Manufacturer
SHINHAN CERAMIC
Product Type
Machine
Brand
-
SKU
131125
Product Name

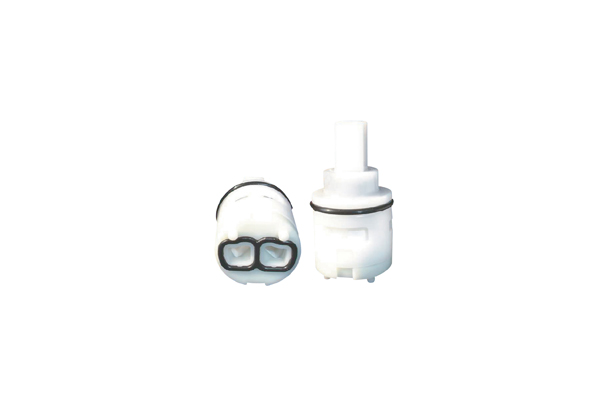

Diverter 25mm
Model Name
25DP, 25DD-1, 25D-2W
Size
-
Weight
-
Product Details
Product Specification
| Max. Opening Angle | 180˚ |
|---|---|
| Nut Torque | 10~11Nm |
| Water Resistance Pressure | Max. 35bar |
| Working Torque | Max. 0.5 Nm |
| Max. Temperature | 90 ˚C |
| Max. Noise Level | 15~18db |
| Flow Rate (at 1bar) | 12~14 ℓ/min |
| Flow Rate (at 2bar) | 18~21 ℓ/min |
| Flow Rate (at 3bar) | 23~25 ℓ/min |
| Endurance Test | 500,000 cycle |
Dimensions (in mm)
Product Specification
| Max. Opening Angle | 180˚ |
|---|---|
| Nut Torque | 10~11Nm |
| Water Resistance Pressure | Max. 25bar |
| Working Torque | Max. 0.5 Nm |
| Max. Temperature | 90 ˚C |
| Max. Noise Level | 15~18db |
| Flow Rate (at 1bar) | 12~14 ℓ/min |
| Flow Rate (at 2bar) | 18~21 ℓ/min |
| Flow Rate (at 3bar) | 23~25 ℓ/min |
| Endurance Test | 500,000 cycle |
Dimensions (in mm)
Product Specification
| Max. Opening Angle | 100˚ |
|---|---|
| Nut Torque | 8~9Nm |
| Water Resistance Pressure | Max. 25bar |
| Working Torque | Max. 0.5 Nm |
| Max. Temperature | 90 ˚C |
| Max. Noise Level | 15~18db |
| Flow Rate (at 1bar) | 6.8~7.5 ℓ/min |
| Flow Rate (at 2bar) | 8.8~9.4 ℓ/min |
| Flow Rate (at 3bar) | 10.5~11.0 ℓ/min |
| Endurance Test | 500,000 cycle |
Dimensions (in mm)
