Manufacturer
SHINHAN CERAMIC
Product Type
Machine
Brand
-
SKU
131110
Product Name

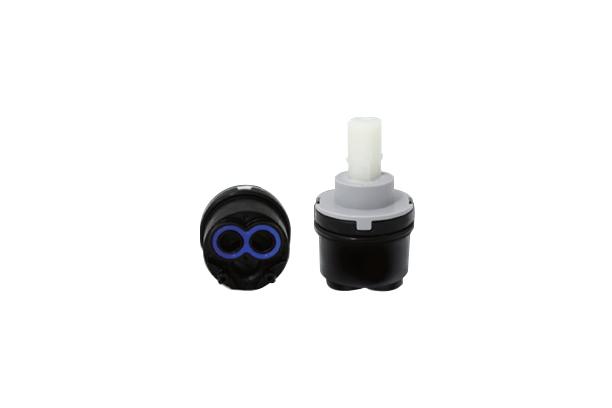

Cartridge 33mm
Model Name
33AF, 33AF-H
Size
-
Weight
-
Product Details
Product Specification
| Max. Opening Angle | 23˚ |
|---|---|
| Max. Turning Angle | 45˚/45˚ |
| Nut Torque | 10~11Nm |
| Water Resistance Pressure | Max. 35bar |
| Working Torque | Max. 0.5 Nm |
| Max. Temperature | 90 ˚C |
| Max. Noise Level | 15~18db |
| Flow Rate (at 1bar) | 8.0~9.0 ℓ/min |
| Flow Rate (at 2bar) | 13.0~14.0 ℓ/min |
| Flow Rate (at 3bar) | 17.0~18.0 ℓ/min |
| Endurance Test | 50,000 cycle |
Dimensions (in mm)
Product Specification
| Max. Opening Angle | 23˚ |
|---|---|
| Max. Turning Angle | 90˚ |
| Nut Torque | 10~11Nm |
| Water Resistance Pressure | Max. 35bar |
| Working Torque | Max. 0.5 Nm |
| Max. Temperature | 90 ˚C |
| Max. Noise Level | 15~18db |
| Flow Rate (at 1bar) | 7.5~8.5 ℓ/min |
| Flow Rate (at 2bar) | 11.0~12.0 ℓ/min |
| Flow Rate (at 3bar) | 14.0~15.0 ℓ/min |
| Endurance Test | 500,000 cycle |
Dimensions (in mm)
