Manufacturer
SHINHAN CERAMIC
Product Type
Machine
Brand
-
SKU
131109
Product Name

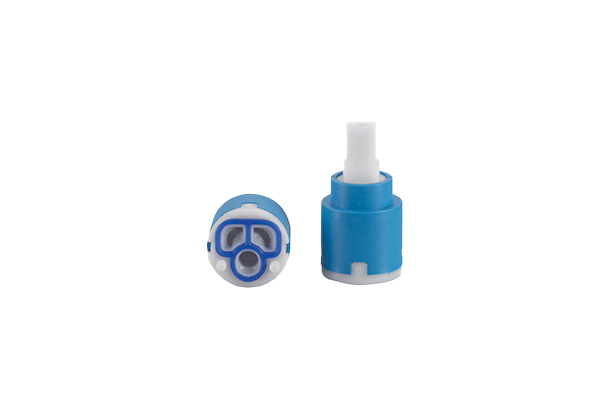

Cartridge 25mm
Model Name
25SR, 25SF, 25ER, 25ER, A, 25EF, 25NR
Size
-
Weight
-
Product Details
| Max. Opening Angle | 25˚ |
|---|---|
| Max. Turning Angle | 100˚ |
| Nut Torque | 8~9Nm |
| Water Resistance Pressure | Max. 25bar |
| Working Torque | Max. 0.5 Nm |
| Max. Temperature | 90 ˚C |
| Max. Noise Level | 15~18db |
| Flow Rate (at 1bar) | 6.8~7.5 ℓ/min |
| Flow Rate (at 2bar) | 8.8~9.4 ℓ/min |
| Flow Rate (at 3bar) | 10.5~11.0 ℓ/min |
| Endurance Test | 500,000 cycle |
Dimension (in mm)
| Max. Opening Angle | 25˚ |
|---|---|
| Max. Turning Angle | 100˚ |
| Nut Torque | 8~9Nm |
| Water Resistance Pressure | Max. 25bar |
| Working Torque | Max. 0.5 Nm |
| Max. Temperature | 90 ˚C |
| Max. Noise Level | 15~18db |
| Flow Rate (at 1bar) | 6.8~7.5 ℓ/min |
| Flow Rate (at 2bar) | 8.8~9.4 ℓ/min |
| Flow Rate (at 3bar) | 10.5~11.0 ℓ/min |
| Endurance Test | 500,000 cycle |
Dimensions (in mm)
Product Specification
| Max. Opening Angle | 22˚ |
|---|---|
| Max. Turning Angle | 60˚/30˚ |
| Nut Torque | 8~9Nm |
| Water Resistance Pressure | Max. 25bar |
| Working Torque | Max. 0.5 Nm |
| Max. Temperature | 90 ˚C |
| Max. Noise Level | 15~18db |
| Flow Rate (at 1bar) | 3.8~4.0 ℓ/min |
| Flow Rate (at 2bar) | 4.5~5.5 ℓ/min |
| Flow Rate (at 3bar) | 5.8~6.6 ℓ/min |
| Endurance Test | 500,000 cycle |
Dimensions (in mm)
Product Specification
| Max. Opening Angle | 22˚ |
|---|---|
| Max. Turning Angle | 60˚/20˚ |
| Nut Torque | 8~9Nm |
| Water Resistance Pressure | Max. 35bar |
| Working Torque | Max. 0.5 Nm |
| Max. Temperature | 90 ˚C |
| Max. Noise Level | 15~18db |
| Flow Rate (at 1bar) | 5.0~6.0 ℓ/min |
| Flow Rate (at 2bar) | 8.0~9.0 ℓ/min |
| Flow Rate (at 3bar) | 10.0~11.0 ℓ/min |
| Endurance Test | 500,000 cycle |
Dimensions (in mm)
Product Specification
| Max. Opening Angle | 22˚ |
|---|---|
| Max. Turning Angle | 60˚/30˚ |
| Nut Torque | 8~9Nm |
| Water Resistance Pressure | Max. 25bar |
| Working Torque | Max. 0.5 Nm |
| Max. Temperature | 90 ˚C |
| Max. Noise Level | 15~18db |
| Flow Rate (at 1bar) | 3.8~4.0 ℓ/min |
| Flow Rate (at 2bar) | 4.5~5.5 ℓ/min |
| Flow Rate (at 3bar) | 5.8~6.6 ℓ/min |
| Endurance Test | 500,000 cycle |
Dimension (in mm)
| Max. Opening Angle | 25˚ |
|---|---|
| Max. Turning Angle | 100˚ |
| Nut Torque | 8~9Nm |
| Water Resistance Pressure | Max. 25bar |
| Working Torque | Max. 0.5 Nm |
| Max. Temperature | 90 ˚C |
| Max. Noise Level | 15~18db |
| Flow Rate (at 1bar) | 9 ℓ/min |
| Flow Rate (at 2bar) | 13 ℓ/min |
| Flow Rate (at 3bar) | 16 ℓ/min |
| Endurance Test | 500,000 cycle |
Dimension (in mm)
More products
Shower faucet shelfLG30100+LG39000, LG30100, LG30102, LG30109, LG30009, LG30002+SAB1002, LG30150, LG30152, LG30159, LG30150+SR39000, LG30152+SAB1002
Diverter 40mm40D-4W(3W, 5W)
Cartridge 40mm40SR, 40SF, 40SMR, 40SMF, 40SR-3, 40SF-3, 40LR, 40LF, 40JR, 40JF, 40AR, 40AF, 40ER, 40EF
Cartridge 38mm38AF, 38AF-CO, 38AF-H, 38AF-3S, 38EF, 38EF-CO, 38EF, A, 38EF, A-CO

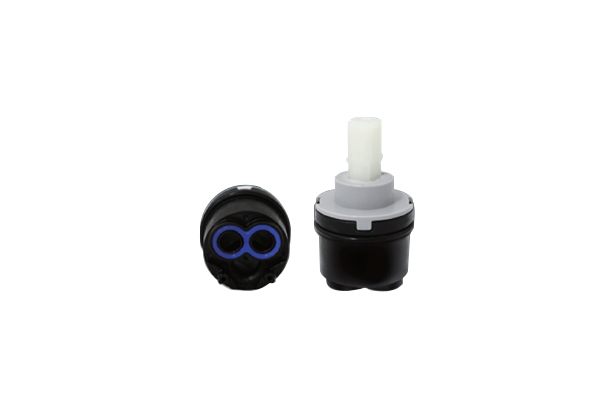

Cartridge 33mm33AF, 33AF-H
THERMOSTATIC SMATH700
THERMOSTATIC PlasticTH100P
Diverter 31mm31D-2W

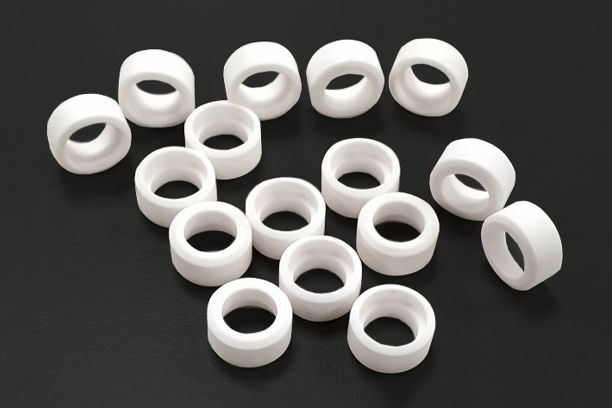

Ceramic for electromagnetism (Ceramic for oxygen sensor)

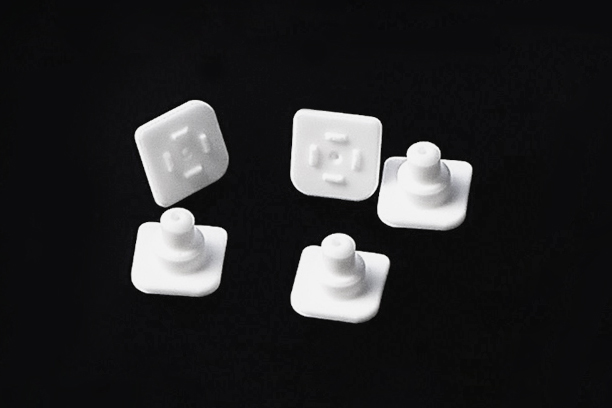

Ceramic for electromagnetism (Ceramic for pressure sensor)

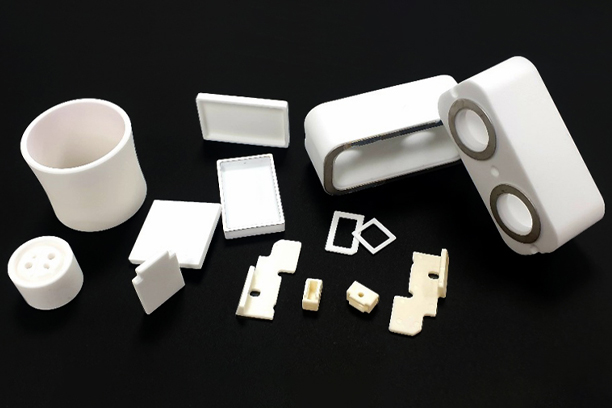

Ceramic for electromagnetism

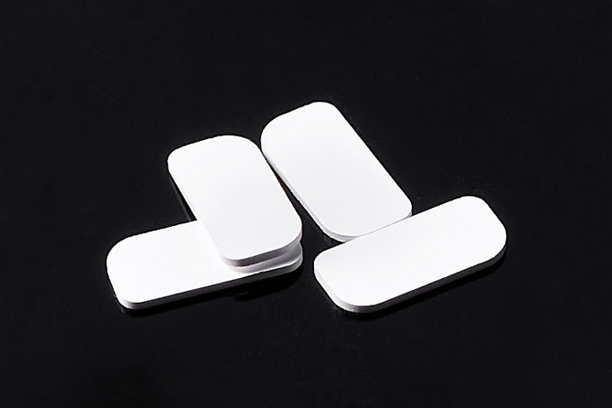

Ceramic for medical purpose (Ceramic membrane)

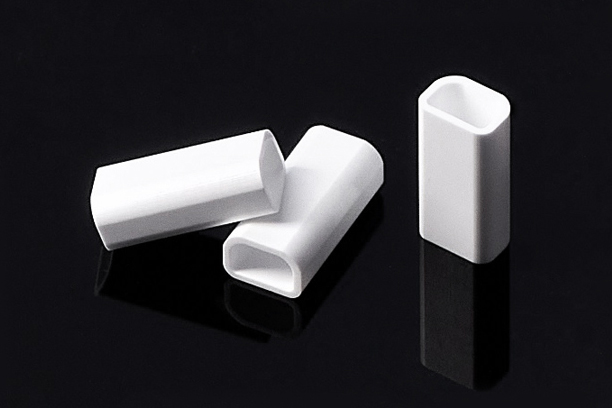

Ceramic for medical purpose (ATZ Ceramic case for medical purpose)

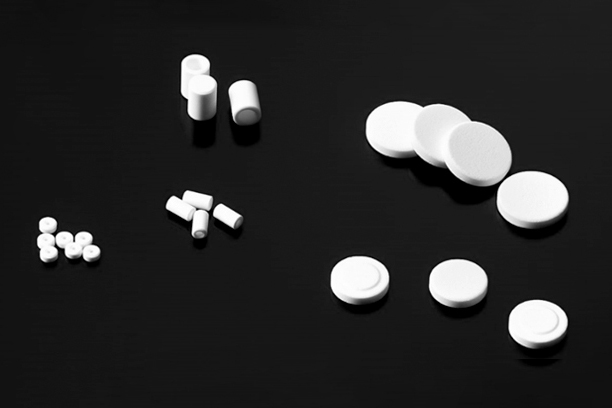

Ceramic for medical purpose (Ceramic filter)

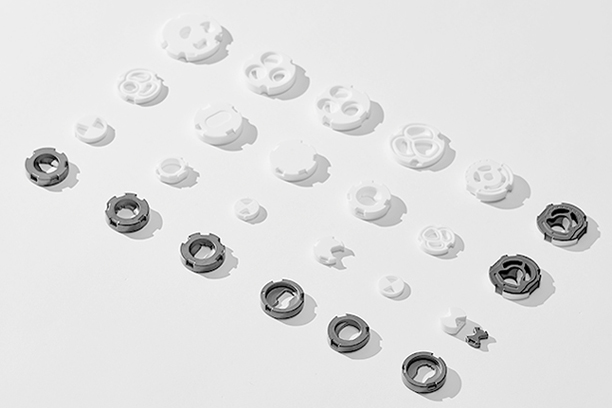

Structural fine ceramic (Ceramic disc)
