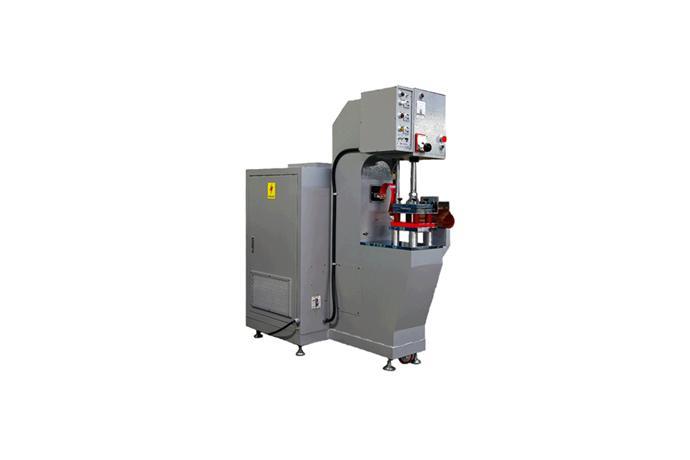

SW-MC

Treadle operated accuracy of C-type press

with 2-guide post, linear motion bearing

, with adjustment and securing

of stroke position.

Pneumatic cylinder and welding timer

will assure you an easy operation

of the machines and may be

equipped at your request.

SPECIFICATION

- Power Source : 220/380V 3Φ 60Hz

As per customer's instructions(overseas)

- MAX. Power Consumption : 15KVA

- MAX. High Frequency Output : 7.5kW

- Operating Frequency : 27.12MHz

- Oscillator Tube : 7T69RB

- Rectifier : Silicon diode

- Safety Device : Ultra sensitive

arc suppressor, O.C.R

- Max. Pressure : 471Kgf

- Pressure Device : pneumatic

cylinder pressure

- Stroke : 150mm

- Size of Electrode : 150 x 200mm

- Size of Platen : 170 x 250mm

- Overall Dimensions :

- Gross weight :
