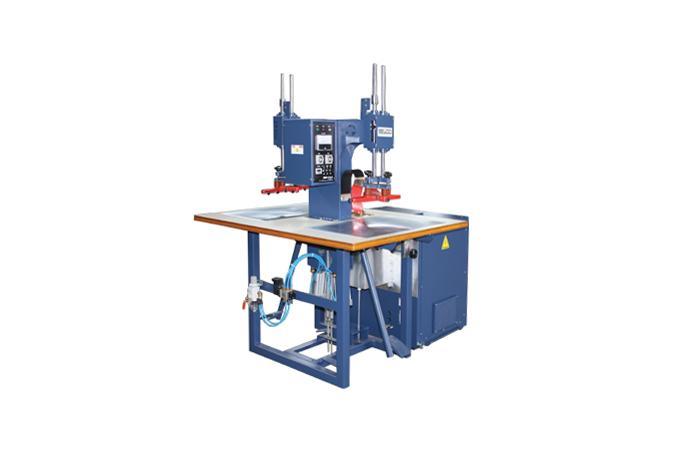

SW-AS

Treadle operated accuracy of C-type press

with 2-guide post, linear motion bearing

, with adjustment and securing

of stroke position.

Pneumatic cylinder and welding timer

will assure you an easy operation

of the machines and may be

equipped at your request.

---

SPECIFICATION

- Power Source : 220/380V 3Φ 60Hz

As per customer's instructions(overseas)

- MAX. Power Consumption : 10KVA

- MAX. High Frequency Output : 5kW

- Operating Frequency : 40.68MHz

- Oscillator Tube : 7T85RB

- Rectifier : Silicon diode

- Safety Device : Ultra sensitive

arc suppressor, O.C.R

- Max. Pressure : 187Kgf

- Pressure Device : Foot & pneumatic

cylinder pressure

- Stroke : 70mm

- Size of Electrode : Bar holder type

- Size of Platen : 400 x 700mm

- Overall Dimensions : 1200 x 1450 x 1570mm

- Gross weight : 290Kg
