SEWOO ENG

SEWOO ENG

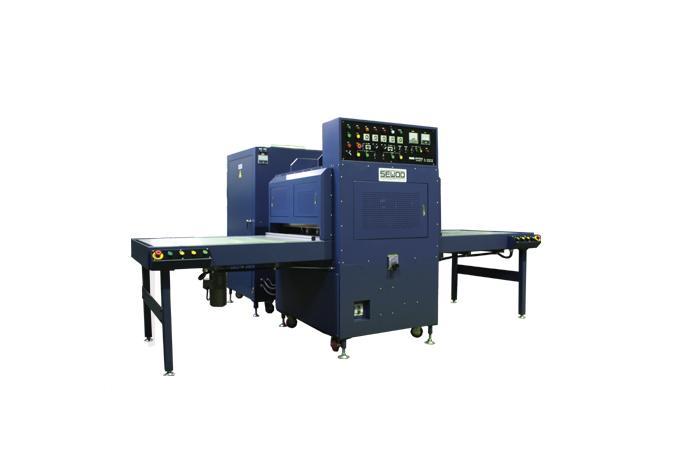

Blister Welding Mahine

Model

Series

Welding Machine


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description

SW-HB

Simple to operate labour saving automatic

machine with built in ultra sensitive

arc suppressor to detect sparks

at a speed of several ten thousandths

of second and stop oscillation.

Shuttle table system, Automatic feed unit etc.

can selectively assembled in accordance

with the work content on to standard

generators of 7.5kW, 10kW, 15kW output.


SPECIFICATION

- Power Source : 220/380V 3Φ 60Hz

As per customer's instructions(overseas)

- MAX. Power Consumption : 30KVA

- MAX. High Frequency Output : 15kW

- Operating Frequency : 27.12MHz

- Oscillator Tube : 8T85RB

- Rectifier : Silicon diode

- Safety Device : Ultra sensitive

arc suppressor, O.C.R

- Max. Pressure : 750Kgf

- Pressure Device : Pneumatic cylinder

direct pressing

- Stroke : 200mm

- Size of Electrode : 600 x 900mm

- Size of Platen : 730 x 1000mm

- Overall Dimensions : 3500 x 2600 x 1800mm

- Gross weight :
