product Image

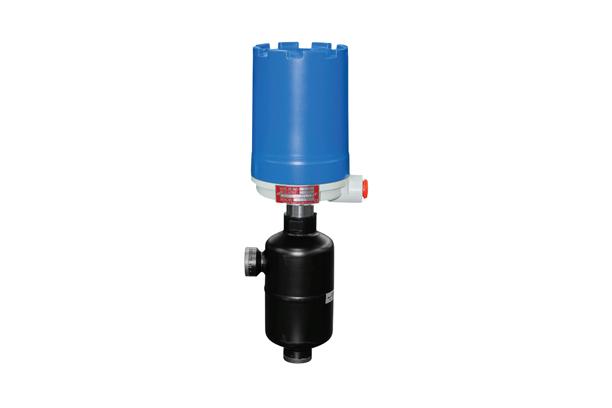

Vertical Float Type Level Switch
Model Name
SMC-7 Series
Series
Level Switch
Data
메뉴얼-서진인스텍-수직 플로트식 레벨 스위치 (SMC-7 SERIES)
Manufacturer information
provider logo
SEOJIN INSTECH

Level sensor, Switch, Siemens, Transmitter, Ultrasonic, Radar, Flowmeter, Water level gauge, Orifice

Problem with product info?
Update request
Manufacturer
SEOJIN INSTECH
Brand
-
SKU
131431
Product Name
Vertical Float Type Level Switch
Model Name
SMC-7 Series
Size
-
Weight
-
Product Details



TYPE & MODEL Vertical Float Type Level Switch
PRINCIPLE This Product is a unique level switch as a critical Process Instrument covering high pressure and high temperature.
Chamber material for this product is not only carbon steel, but also many variety steel materials including 316LSS and 304SS.
This product han been produced for suitable in water and boiler control process, metting various industrial standards and requirements to solve erroneous causes that have occurred in conventioinal industrial fields.
The customizing for this product is possible for specific operational condition and anti-corrosion. Please contact our sales staff if you have andy special design for ths product.
TEMPERATURE PRESSURE OUTPUT
  • -40℃~400℃
  • SMC-73 : Max. 46 BAR
  • SMC-75 : Max. 70 BAR
  • Standard : 1 SPDT
  • Optional : 1 DPDT
  • Contact Rating :
    10A 250V AC / 0.6A 125V DC
    5A 250V AC / 0.5A 125V DC
    1A 250V AC / 1A 30V DC
    15A 250V AC / 1A 125V DC
    1A 115V AC / 3A 28V DC
FEATURES
  • Can be used for vessel under high pressure and temperature
  • Designed to ASME B31.1
  • Weather poof / Explosion proof / Frame proof
  • Unique and reliable : Snap acting switch mechanism
  • Vibration resistant - eliminates fate trips by special spring
  • A wide variety of chambers can be used
  • Multiple switches can be assembled in a unit for economical purpose
  • Weld procedures approved to KEPCI MQ and ASME IX
  • Qualified to IEEE 323-2003, and IEEE 344-2004
  • Applicable to hermetical seal type snap action switch
INDUSTRY Petrochemistry, Nuclear/Power Generation Plant

MODEL: SMC-73B-1-A-1-A-1-A-1_S-B Chamber type_Flange, SMC-73B-1-A-1-A-1-A-1_S-B Chamber type_S.W, SMC-73B-1-A-1-A-1-A-1_S-S Chamber type_Flange, SMC-73B-1-A-1-A-1-A-1_S-S Chamber type_S.W, SMC-73B-1-A-5-C-1-F-1-A-1-A_Chamber type, SMC-73F-1-A-1-A-1-A-1, SMC-73F-1-A-1-A-1-A-1_S-B Chamber type_Flange, SMC-73F-1-A-1-A-1-A-1_S-B Chamber type_S.W, SMC-73F-1-A-1-A-1-A-1_S-S Chamber type_Flange, SMC-73F-1-A-1-A-1-A-1_S-S Chamber type_S.W, SMC-73F-1-A-1-A-1-B-1, SMC-73F-1-A-1-A-1-C-1, SMC-73F-1-A-1-A-5-A-1, SMC-73F-1-A-1-A-5-B-1, SMC-73F-1-A-1-A-5-C-1, SMC-75B-1-A-1-A-1-A-1_S-B Chamber type_Flange, SMC-75B-1-A-1-A-1-A-1_S-B Chamber type_S.W, SMC-75B-1-A-1-A-1-A-1_S-S Chamber type_Flange, SMC-75B-1-A-1-A-1-A-1_S-S Chamber type_S.W, SMC-75F-1-A-1-A-1-A-1, SMC-75F-1-A-1-A-1-A-1_S-B Chamber type_Flange, SMC-75F-1-A-1-A-1-A-1_S-B Chamber type_S.W, SMC-75F-1-A-1-A-1-A-1_S-S Chamber type_Flange, SMC-75F-1-A-1-A-1-A-1_S-S Chamber type_S.W, SMC-75F-1-A-1-A-1-B-1, SMC-75F-1-A-1-A-1-C-1, SMC-75F-1-A-1-A-5-A-1, SMC-75F-1-A-1-A-5-B-1, SMC-75F-1-A-1-A-5-C-1, SMC-75F-1-A-1-A-10-A-1, SMC-75F-1-A-1-A-10-B-1, SMC-75F-1-A-1-A-10-C-1
