SEOJIN INSTECH

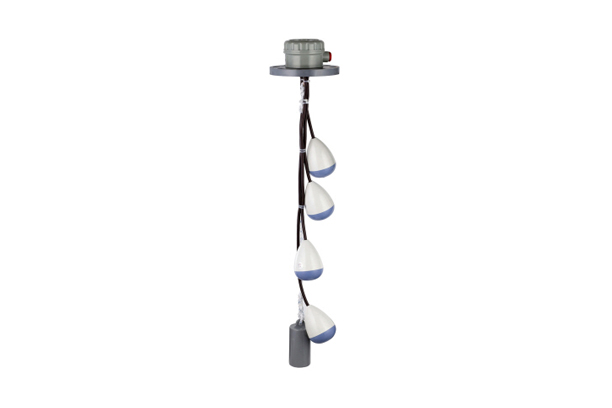

Quick Float Type Level Switch

Model

Series

Level Switch

Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.

Description

TYPE & MODEL	Quick Float Type Level Switch
PRINCIPLE	When the float becomes afloat by the change in the surface, the internal Balance Weight instantly moves to the other side, and because of the rapid change in the center of gravity, the Float turns upside down like a tumbler, and operates the micro switch or the mercury switch in order to show the electric contact and control the level. It is usually used for the level control of domestic or other waste water - Control unit (separately sold)
RANGE	TEMPERATURE	PRESSURE

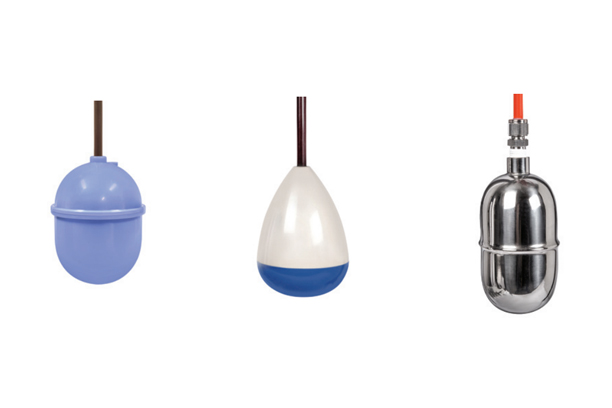

Standard :5m Optional: Within 20m	SQM/H/C : -10℃∼70℃(plastic) SQE : -10℃∼150℃(316SS)	SQM/H/C : 2㎏/㎠(ABS plastic) SQE : Max. 10㎏/㎠(316SS)
FEATURES	OUTPUT	APPLICATION
Low cost Easy installation Applied to waste water and sewage The electric contact location can be controlled on-site Two-wire type possible.	Standard : 1∼4 point Optional : 5 point Contact capacity : SQM : 0.4A 100V AC(Micro S/W) SQH : 3A 250V AC(mercury S/W) SQC/E : 1A 120V AC(Micro S/W)	Excrement tank Industrial waste water Agricultural sewage processing Other waste water treatment plant General water tanks

MODEL: SQC-1-A-1-A-1-A-1, SQC-2-A-1-A-1-A-1, SQC-3-A-1-A-1-A-1, SQC-4-A-1-A-1-A-1, SQC-4-A-2-A-1-A-1, SQC-5-A-1-A-1-A-1, SQE-1-A-1-B-1-A-1, SQE-2-A-1-B-1-A-1, SQE-3-A-1-B-1-A-1, SQE-4-A-1-B-1-A-1, SQE-4-A-2-B-1-A-1, SQE-5-A-1-B-1-A-1, SQH-1-A-1-A-1-A-1, SQH-1-A-1-B-1-A-1, SQH-2-A-1-A-1-A-1, SQH-2-A-1-B-1-A-1, SQH-3-A-1-A-1-A-1, SQH-3-A-1-B-1-A-1, SQH-4-A-1-A-1-A-1, SQH-4-A-1-B-1-A-1, SQH-4-A-2-A-1-A-1, SQH-4-A-2-B-1-A-1, SQH-5-A-1-A-1-A-1, SQH-5-A-1-B-1-A-1, SQM-1-A-1-A-1-A-1, SQM-1-A-1-B-1-A-1, SQM-2-A-1-A-1-A-1, SQM-2-A-1-B-1-A-1, SQM-3-A-1-A-1-A-1, SQM-3-A-1-B-1-A-1, SQM-4-A-1-A-1-A-1, SQM-4-A-1-B-1-A-1, SQM-4-A-2-A-1-A-1, SQM-4-A-2-B-1-A-1, SQM-5-A-1-A-1-A-1, SQM-5-A-1-B-1-A-1

Download

Catalog-Seojin instech-Quick float type level switch (SQ)

Manual-Seojin instech-Quick float type level switch (SQ)

Drawing-Seojin instech-Quick float type level switch (SQ)
