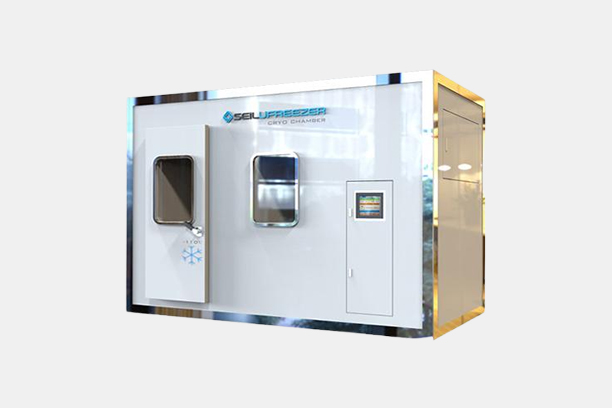

Whole-body Cryotherapy
Model Name
SMC-05
Data
-
Manufacturer information
provider logo
SEILUFREEZERFreezer manufacturer, Refrigerated storage, Ultra-low freezing system, Environmental chamber and more
Problem with product info?
Update request
Manufacturer
SEILUFREEZER
Brand
-
SKU
60042
Product Name
Whole-body Cryotherapy
Model Name
SMC-05
Size
-
Weight
-
Product Details

Quick Information

Place of Origin: Korea

Model Number : SMC-05



Description

Brief Introduction to the Seil's Cryo Therapy Chamber

The Cryo Therapy Chamber, developed by the Seil-U-Freezer for the first time in Asia, guarantees outstanding safety and cost-effectiveness for its unique manufacturing technology. Seil's Chryo Therapy Chamber was authorized by Korea Food & Drug Agency. It was manufactured based on the different technology from that of German counterparts. The previous freezing products were operated with two cycle compressure systems. However, they were prone to frequent breakdowns and malfunction causing more costs. Comparative tests have verified that Seil UFreezer's Cryo Therapy Chamber excels in operation with low costs.

The previous products used multiple compressors to derive ultra-low temperature but Seil UFreezer accomplished unique technology of the ultimate freezing temperature using single compressor system and mixture of various coolants different from that of foreign manufacturers. Seil UFreezer's Cryo Therapy Chamber is well-known for its advanced manufacturing technology and it is an environmentally friendly.

The first single compressor freezing system was recognized internationally state-of-art technology combined with freezing system, drying system, and temperature/humidity circulation system.

The first ultra freezing system(-100°C~-120°C) manufactured in Korea
The technology of manufacturing Cryo Therapy Chamber was recognized as a medical equipment world wide.

The first single compressor freezing system was recognized internationally state-of-art technology combined with freezing system, drying system, and temperature/humidity circulation system.

The first authorization of new Health Technology from the Ministry of Health and Welfare.

Nomenclature

Therapeutic Sub-zero Temperature Freezer

Product Authorization Number

06-472

Manufacture Authorization

2351

Structures of Product

1. Cryotherapy Chamber(Preparatory and Main)
2. Controller
3. Outdoor Equipment

Weight

1,100kg

Power

AC 380V 60Hz

Power Wattage(Maximum)

25KVA(Maximum 42KVA)

Electricity Protection Form

1st Class Equipment, Form B

★This equipment is a medical device



Daily Temperature Status

SEILUFREEZER Whole-body Cryotherapy SMC-05



Hourly Status

~06:00

Recess

06:00~09:00

Start the Chamber to decrease the temperature

09:00~12:30

Morning Treatments

12:30~13:30

Lunch Break(The Chamber turned off and resume operation)

13:00~18:00

Afternoon Treatments

18:00~20:30

Defrost and Cleanup

20:30~

Chambers turned off and Recess



SEILUFREEZER Whole-body Cryotherapy SMC-05 1



The Strengths of SMC-05, SMC-10

ㆍThe clinical effects of SMC-05,10 are about the same as those of other foreign made products.

ㆍSMC-05,10 enabled to lower the temperature of the chamber up below -110°C due to the freezing mechanism of the state of the art, by adopting a single compressor system. Competitive products are of three-compressor systems.

ㆍSMC-05,10 are capable of maintaining the temperature of the therapeutic chamber at up to - 128°C.

ㆍInstead of CFC, SMC-05,10 use those 15 different inert gases, which are pro-environmental refrigerant. The other products use "R-507" or "R-404A" in the first stage and "R-23" or "R-508A" in the second stage, and "R-14", in the third. (This procedure makes the systems unstable due to low-pressure operation.)

ㆍThe price of SMC-05,10 are about one third of other imported products.

SEILUFREEZER Whole-body Cryotherapy SMC-05 2

SEILUFREEZER Whole-body Cryotherapy SMC-05 3
