Description

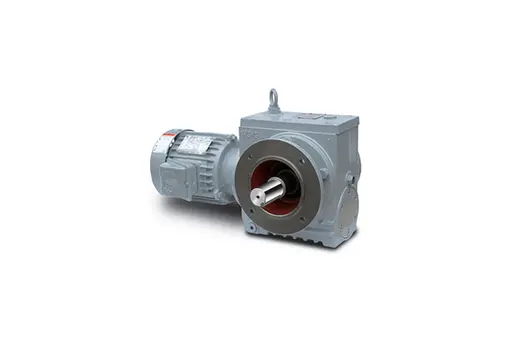

Compared to the helical gear unit-worm gear unit combination, this gives high efficiency, economy, high ratio and low noise, and is installed in a small space.
| Main Features | |
|---|---|
|
high efficiency Compared to the previous 2 stage type worm reduction gear, this has more than 1.5 times better efficiency. High Stiffness As the reduction gear case has all gears in-built in the body, the structural stiffness is high and so compact installation is possible. Convenience As the motor input shaft is located at the center of the reduction gear, it is easy for users to choose and design installation. |
|
| Product Types | |
|---|---|
|
Solid Shaft Type As the output shaft is an ordinary cylindrical type shaft with a KEY seat, this can be used by COUPLING or PULLEY installation. Hollow Shaft Type The output shaft is hollow type. COUPLING can be directly connected to the driven shaft without any PULLEY. Motor Attached Type This can be bought with the motor installed at the time of release. |
|
| Product Specification | |
|---|---|
| Model No. | HW20, HW25, HW30, HW35, HW45, HW60, HW70 |
| Power | 0.2KW~7.5KW |
| Reduction gear ratio | 1/10~1/180 |
| Type | Horizontal Type, Vertical Type |
