product Image

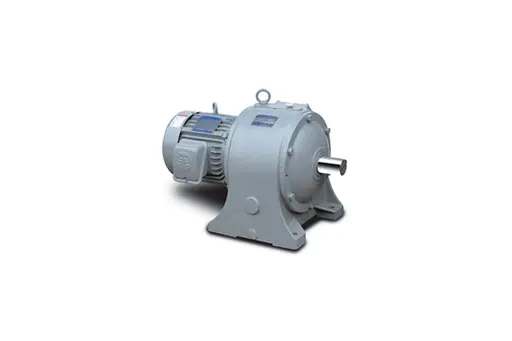

Super Max Geared Motor
Model Name
-
Series
Gear Unit
View All
Data
Catalog-Samyang Reduction-Gear Unit-Super Max Geared Motor
Manufacturer information
provider logo
NARA SAMYANG

Industrial reducing machine manufacturer, Geared motor, Worm reducing machine, Planetary reducing machine, Solar lighting and more

Problem with product info?
Update request
Manufacturer
NARA SAMYANG
Product Type
Machine
Brand
-
SKU
135173
Product Name
Super Max Geared Motor
Model Name
-
Size
-
Weight
-
Product Details

Compared to the previous reduction gear, vibration rate is reduced by 30% and noise is reduced by more than 10dB.

As the gear material, SCM420 and SM45C are used, and carburizing, high frequency and heat treatment aew adopted and polishing is performed to improve precision.



Product Specification
Model No. #165 ~ #520
Power 1.5kW ~ 75kW
Reduction gear ratio 1/5 ~ 1/150
Product type Horizontal(Horizontal Type)
Vertical(Vertical Type)
Line Power



Main Features
  • - Electric Motor
    High efficiency, F-type motor designed exclusively for energy-saving SUPER-MAX is adopted.
  •
  • - Pinion & Gear
    Low noise, high efficiency and long lifetime are realized by applying new design that equalizes the lifetimes of pinion and gear in the independently developed technology.
  •
  • - Bearings
    As self-aligning roller bearings and taper roller bearings are adopted, decomposition and assembly of reduction gears can easily be controlled by Adjusting Plate.
  •
  • - Lubrication
    New equipment was adopted to use spray lubrication. Compared to ordinary geared motors, oil amount is reduced by 10% and installation inclination angle up to 20。is possible.
