Description
FS-X1
Fire-retardant & Anti-noise, Anti-vibration Devices
Remitite FS-X1 is a remarkable anti-vibration and fire-resistant device. It performs well for protecting metallic components from vibration and in fire-resistant and fire prevention applications. FS-X1 is available in a range of forms, each having passed durability tests as well as the stringent regulations of the International Maritime Organization.
Applications
|

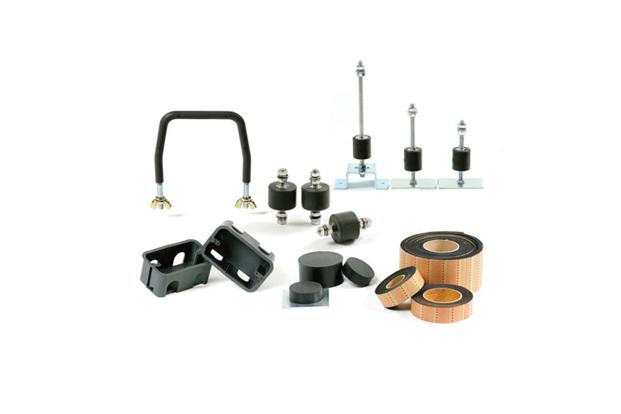

Anti-vibration Pad : Foundations and profiles of machinery Wrapping cables Sealing gaps |

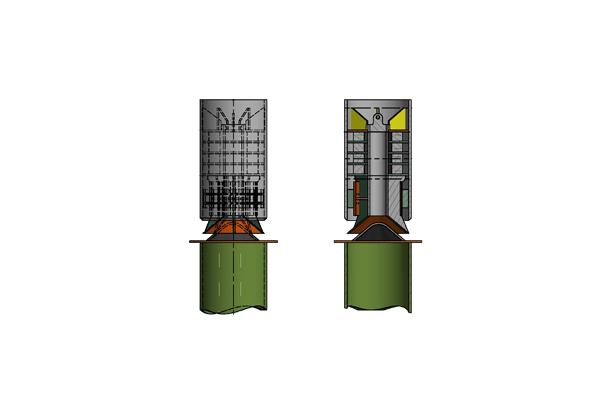

Anti-vibration Mounting for Lighting & Equipment : Foundations of fans, air handling units, and auxiliary machine units Foundations of electrical consoles and electrical switchboards Foundations of lighting supports |
Fire-retardant Back Box : Switches Receptacles Electric equipment R/TV Outlets |
|
Anti-vibration Hanger Hook : Hooks for fixing ceiling panel channels U-bolts for fixing pipes Clamps |
O-ring for Plank Seal : Plank for helideck |
Anti-vibration Mounting for Wall & Ceiling Panels : Ceilings and wall panels of ships or marine structures |
Features
ㆍFire-resistant, nontoxic and almost smokeless
ㆍHigh tensile strength
ㆍHigh durability
ㆍStandard or matched at customer’s request (anti-vibration mount, support, mat)
Specifications
| Color | Dark gray |
|---|---|
| Service life | More than 40 years |
| Service temperature | -60℃ ~ 250℃ |
| Compressive strength | 0.27 ~ 0.64 MPa (25%) |
| Storage temperature | Room temperature |
| Cold shock | No crack, (-55±1)°C, 3 minutes |
