Description

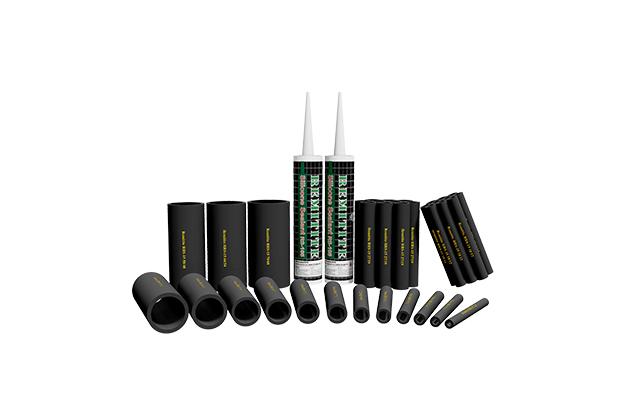

RS-105 and RRS-15 are superb for sealing cables and pipes in penetration by finishing the outside with Remitite Silicone Sealant 105 after protecting the inside with RRS-15 sleeves.
Cable & Pipe Penetration Sealing System is rated in classes A-60 and H-120 and shows excellent fire-resistance, expandability and endothermic performance.
RS-105 and RRS-15 expand up to 20 times its original volume when exposed to temperatures above 180℃. During this expansion process, a porous mass is formed, which has thermal insulation properties. Also, this expansion is not accompanied by the formation of large amounts of fumes. This system is proven as an ultraviolet radiation and ozone interceptor.
Silicone Sealant RS-105
 |
Remitite Silicone Sealant RS-105 is a fire and water resistant sealant based on a single component compound. It is an adaptable and flexible product that can be used in many different applications, jointing between building elements and materials, especially in shipping and offshore plants. |
Specification
| Color | Dark gray |
|---|---|
| Total drying time | 120 hours (20 mm) |
| Surface drying time | 1 ~ 2 hours |
| Capacity | Cartridges containing (310 ml) |
| Storage life | 12 months |
| Service life | More than 50 years |
| Service temperature | -55℃ ~ 180℃ |
| Tensile failure | 80% |
| Storage temperature | Room temperature |
| UV test | Grade 5 (40±1)℃, 24 hours |
| Cold shock | No crack, (-55±1)˚C, 3 minutes |
Limitations
ㆍCannot be overpainted.
ㆍNot intended for structural glazing.
ㆍDo not allow sealant to come in contact with solvent during cure.
ㆍDo not allow sealant to come in contact with curing polyurethane sealants during cure.
ㆍNot intended for immersion.
ㆍSealant may be applied below freezing temperatures if substrates are completely dry, frost free and clean.
ㆍContact Technical Service for more information.
ㆍDo not apply when substrate temperatures are below -20°F or above 130°F.
ㆍNot recommended for absorptive surfaces such as natural stone, particularly limestone or marble where staining may occur test before use.
ㆍBrass or copper may be discolored. Test prior to application.
ㆍDo not apply to surfaces that will be painted as sealant surface will not hold paint
ㆍDo not apply to substrates that bleed oil, plasticizers or solvent.
ㆍDo not apply to damp or wet substrates.
ㆍLower temperature and humidity will extend tack free and cure rates.
ㆍTest sensitive substrates, such as mirror backings, for compatibility before use.
Caution
ㆍDirect eye contact may cause irritation.
ㆍEye contact may cause conjunctivitis,corneal damage, or severe chemical burns.
ㆍMay cause skin irritation and sensitization.
ㆍMay be harmful if swallowed
ㆍProduct contains oximes, possible skin sensitizers.
Applications
ㆍFire-retardant sealing for cables
ㆍFire-retardant sealing for PVC, PP-R & PB pipe
ㆍWater and gas-proof sealing for electronic & wiring elements
Features
ㆍFire rating: A-60 & H-120 class
ㆍExcellent intumescences and heat absorption
ㆍHigh elasticity and high tensile strength
ㆍHigh bonding strength
ㆍGas and water tightness
ㆍUV light and ozone resistance
ㆍVariety of sizes, which conform to all wiring standards
ㆍNo negative changes in repelling cold and heat
Specifications
| Total drying time | 120 hours (20mm) |
|---|---|
| Surface drying time | 1~2 hours |
| Service temperature | -55°C ~ 180°C |
| UV test | Grade 5, (40±1)℃, 24 hours |
| Cold shock | No crack, (-55±1)℃, 3 minutes |
| Service life | More than 50 years |
