Description

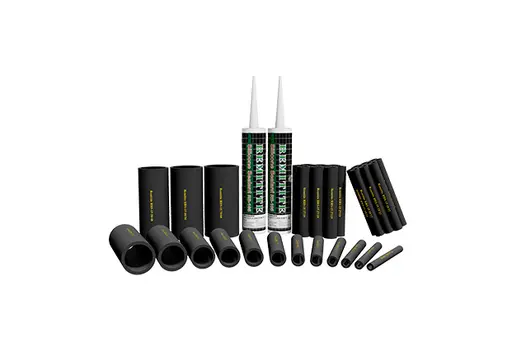

RS-105 and RRS-15 are superb for sealing cables and pipes in penetration by finishing the outside with Remitite Silicone Sealant 105 after protecting the inside with RRS-15 sleeves.
Cable & Pipe Penetration Sealing System is rated in classes A-60 and H-120 and shows excellent fire-resistance, expandability and endothermic performance.
RS-105 and RRS-15 expand up to 20 times its original volume when exposed to temperatures above 180℃. During this expansion process, a porous mass is formed, which has thermal insulation properties. Also, this expansion is not accompanied by the formation of large amounts of fumes. This system is proven as an ultraviolet radiation and ozone interceptor.
Silicone Sealant RS-105
 |
Remitite Sleeve RRS-15 is a fire-resistant, intumescent, and endothermic special rubber compound, creating value for customers in shipping and offshore plants. The extrudability of this product at high temperature and water-resistance is excellent. RRS-15 M18/12 and M27/19 can be supplied in nonsplit multi-units of 10 pieces bonded together. |
Dimensional Data of RRS-15 (A & H class)
| Type | Cable Diameter (mm) | Length (mm) | Wall Thickness (mm) | |
|---|---|---|---|---|
| A class | H class | |||
| 12/6 | 5-7 | 140/160 | 210 | 3 |
| 14/8 | 7-9 | 3 | ||
| 16/10 | 9-11 | 3 | ||
| 18/12 | 11-13 | 3 | ||
| 20/14 | 13-15 | 3 | ||
| 22/16 | 15-17 | 3 | ||
| 27/19 | 17-21 | 4 | ||
| 31/23 | 21-25 | 4 | ||
| 35/27 | 25-29 | 4 | ||
| 39/31 | 29-33 | 4 | ||
| 46/36 | 33-39 | 5 | ||
| 52/42 | 39-45 | 5 | ||
| 58/48 | 45-51 | 5 | ||
| 64/54 | 51-57 | 5 | ||
| 70/60 | 57-63 | 5 | ||
| M18/12 | Multi-type | 3 | ||
| M27/19 | Multi-type | 3 | ||
Applications
ㆍFire-retardant sealing for cables
ㆍFire-retardant sealing for PVC, PP-R & PB pipe
ㆍWater and gas-proof sealing for electronic & wiring elements
Features
ㆍFire rating: A-60 & H-120 class
ㆍExcellent intumescences and heat absorption
ㆍHigh elasticity and high tensile strength
ㆍHigh bonding strength
ㆍGas and water tightness
ㆍUV light and ozone resistance
ㆍVariety of sizes, which conform to all wiring standards
ㆍNo negative changes in repelling cold and heat
Specifications
| Total drying time | 120 hours (20mm) |
|---|---|
| Surface drying time | 1~2 hours |
| Service temperature | -55°C ~ 180°C |
| UV test | Grade 5, (40±1)℃, 24 hours |
| Cold shock | No crack, (-55±1)℃, 3 minutes |
| Service life | More than 50 years |
