Manufacturer
REELTEC
Product Type
Machine
Brand
-
SKU
137770
Product Name

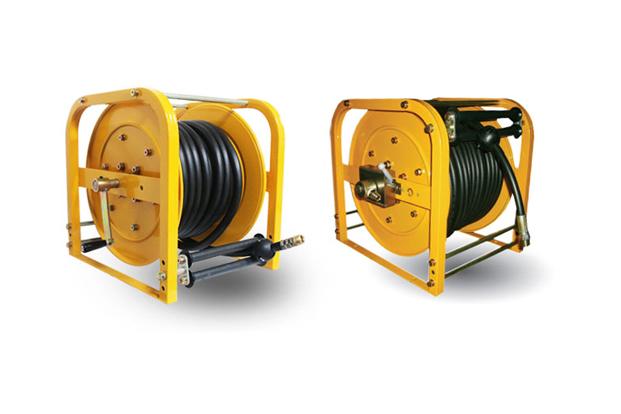

Manual Rewind Type (HQ-Series)
Model Name
HQ6-3, HQ6-5, HQ6-7, HQ6-9, HQ9-3, HQ9-5, HQ9-7, HQ9-9, HQ13-3, HQ13-5, HQ13-7, HQ13-9
Size
-
Weight
-
Product Details
Uses : For Air, Water, Hydraulic, Lubrication, Fuel dispensing etc.
Design & Structure
- Lightweight steel construction , compact design and versatile usage.
- HQ Series designed for mobile and portable
- Square pipe frame is suitable for portable than another type.
- Permanent direct crank rewind .
- Roller guides is option(Specify roller position when ordering.)
- Brake System: cam-lock drag brake or spring actuated pin lock(Supplied with spring actuated pin lock as standard)
- Full flow shaft and swivel
- Standard inlet 90° balanced pressure swivel joint(NBR Packing)
- Inlet & Outlet connection threads are female NPT. (Other threads are available when you request)
- All materials are carbon steel as standard (Stainless, Aluminum and other materials are available when you request)
- All HQ series reels are supplied without hose, hose assemblies will be quoted as you requested.
- Other specifications are available
Painting : Powder Coat.
Specification
| Available Hose specifications | Max Pressure | Max Temperature | Rewind Type | Installation | ||
|---|---|---|---|---|---|---|
| Size(Inch) | Hose Material | Length(MR) | ||||
| 1/4inch~1/2 inch | PVC(1/TB) | 20MR~50MR | 2900psi/200bar | 212℉ (100℃) | Manual | Floor |
| Rubber(1W/B) | 70ft~160ft | |||||

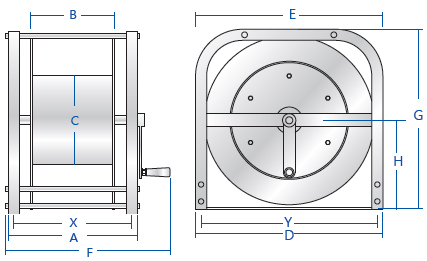

| MODEL NO. | HOSE CAPACITY | REEL DIMENSIONS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D | O.D | LEN GTH | A | B | C | D | E | F | G | H | X | Y | |
| mm inch | mm inch | meter feet |
mm inch | mm inch | mm inch | mm inch | mm inch | mm inch | mm inch | mm inch | mm inch | mm inch | |
| HQ6-3 | 6.5 1/4 |
13 0.5 |
20 50 |
180 7.1 |
70 2.8 |
200 7.9 |
420 16.5 |
380 15 |
280 11 |
410 16.1 |
210 8.3 |
155 6.1 |
250 9.8 |
| HQ6-5 | 6.5 1/4 |
13 0.5 |
30 100 |
210 8.3 |
100 3.9 |
200 7.9 |
420 16.5 |
380 15 |
310 12.2 |
410 16.1 |
210 8.3 |
185 7.3 |
250 9.8 |
| HQ6-7 | 6.5 1/4 |
13 0.5 |
40 130 |
230 9.1 |
120 4.7 |
200 7.9 |
420 16.5 |
380 15 |
330 13 |
410 16.1 |
210 8.3 |
205 8.1 |
250 9.8 |
| HQ6-9 | 6.5 1/4 |
13 0.5 |
50 165 |
260 10.2 |
150 5.9 |
200 7.9 |
420 16.5 |
380 15 |
360 14.2 |
410 16.1 |
210 8.3 |
235 9.3 |
250 9.8 |
| HQ9-3 | 9.5 3/8 |
16.5 0.6 |
20 50 |
230 9.1 |
120 4.7 |
200 7.9 |
420 16.5 |
380 15 |
330 13 |
410 16.1 |
210 8.3 |
205 8.1 |
250 9.8 |
| HQ9-5 | 9.5 3/8 |
16.5 0.6 |
30 100 |
290 11.4 |
180 7.1 |
200 7.9 |
420 16.5 |
380 15 |
390 15.4 |
410 16.1 |
210 8.3 |
265 10.4 |
250 9.8 |
| HQ9-7 | 9.5 3/8 |
16.5 0.6 |
40 130 |
320 12.6 |
210 8.3 |
200 7.9 |
420 16.5 |
380 15 |
420 16.5 |
410 16.1 |
210 8.3 |
295 11.6 |
250 9.8 |
| HQ9-9 | 9.5 3/8 |
16.5 0.6 |
50 165 |
350 13.8 |
240 9.4 |
200 7.9 |
420 16.5 |
380 15 |
450 17.7 |
410 16.1 |
210 8.3 |
325 12.8 |
250 9.8 |
| HQ13-3 | 12.7 1/2 |
20.6 2.8 |
20 50 |
290 11.4 |
180 7.1 |
200 7.9 |
420 16.5 |
380 15 |
400 15.7 |
410 16.1 |
210 8.3 |
265 10.4 |
250 9.8 |
| HQ13-5 | 12.7 1/2 |
20.6 2.8 |
30 100 |
350 13.8 |
240 9.4 |
200 7.9 |
420 16.5 |
380 15 |
460 18.1 |
410 16.1 |
210 8.3 |
325 12.8 |
250 9.8 |
| HQ13-7 | 12.7 1/2 |
20.6 2.8 |
40 130 |
410 16.1 |
300 11.8 |
200 7.9 |
420 16.5 |
380 15 |
520 20.5 |
410 16.1 |
210 8.3 |
385 15.2 |
250 9.8 |
| HQ13-9 | 12.7 1/2 |
20.6 2.8 |
50 165 |
460 18.1 |
350 13.8 |
200 7.9 |
420 16.5 |
380 15 |
570 22.4 |
410 16.1 |
210 8.3 |
435 17.1 |
250 9.8 |
※The specifications are subject to be changed without previous notice for improvement.
