product Image

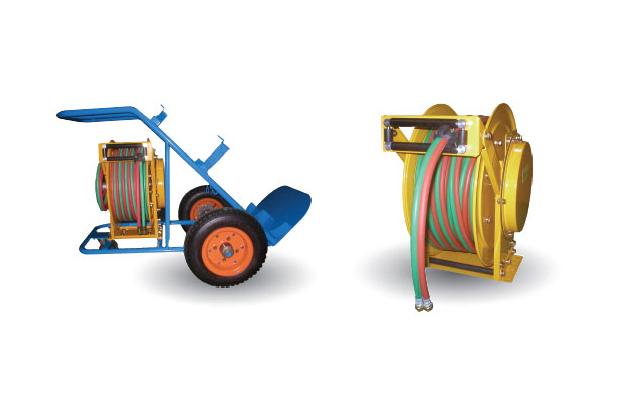

Gas Welding Reel (GR-ST Series)
Model Name
GR615ST
Series
Welding Reel
View All
Data
-
Manufacturer information
provider logo
REELTEC

Reel manufacturer, Air reel, Gas reel, Hose reel, Hose for crane and more

Problem with product info?
Update request
Manufacturer
REELTEC
Product Type
Machine
Brand
-
SKU
137810
Product Name
Gas Welding Reel (GR-ST Series)
Model Name
GR615ST, GR620ST, GR630ST, GR650ST, GR815ST, GR820ST, GR830ST, GR850ST
Size
-
Weight
-
Product Details

Uses : For oxygen/acetylene (Gas welding & cutting)



Design & Structure

  • Reels are all steel construction and compact design
  • All bolted assembly without weldings
  • Dual frame ,guide plate & ball bearing support.
  • Special heat-treatment spring & non-corrosive ratchet.
  • 4-way roller assembly.
  • Full flow shaft and swivel
  • Standard inlet 90° balanced pressure swivel joint(NBR Packing)
  • Right hand for oxygen(green color hose), left hand for acetylene(red color hose)
  • Inlet & Outlet connection threads are female NPT. (Other threads are available when you request)
  • All materials are carbon steel as standard (Stainless, Aluminum and other materials are available when you request)
  • Special heat-treatment spring & non-corrosive ratchet.
  • 4-way roller guide



Painting : Powder Coat.



Specification

Available Hose specifications Max Pressure Max Temperature Rewind Type Installation
Size(Inch) Hose Material Length(MR)
3/16inch~5/16inch Rubber 15MR~50MR 145psi/10bar 122℉ (50℃) Spring Floor, Wall
50ft~160ft





MODEL NO. HOSE CAPACITY REEL DIMENSIONS
I.D O.D LEN GTH A B C D E F G H X Y
mm inch mm inch meter
feet		 mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
GR615ST 4.8
3/16		 11.6
0.4		 15
50		 270
10.6		 120
4.7		 200
7.9		 110
4.3		 350
13.8		 380
15.0		 380
15.0		 205
8.1		 230
9.1		 70
2.8
GR620ST 4.8
3/16		 11.6
0.4		 20
70		 270
10.6		 120
4.7		 200
7.9		 110
4.3		 380
15.0		 380
15.0		 410
16.1		 220
8.7		 230
9.1		 70
2.8
GR630ST 4.8
3/16		 11.6
0.4		 30
100		 270
10.6		 120
4.7		 250
9.8		 150
5.9		 450
17.7		 380
15.0		 480
18.9		 255
10.0		 230
9.1		 110
4.3
GR650ST 4.8
3/16		 11.6
0.4		 50
165		 270
10.6		 120
4.7		 280
11.0		 150
5.9		 550
21.7		 380
15.0		 580
22.8		 305
12.5		 230
9.1		 110
4.3
GR815ST 7.9
5/16		 15
0.5		 15
50		 270
10.6		 120
4.7		 200
7.9		 110
4.3		 380
15.0		 380
15.0		 410
16.1		 220
8.7		 230
9.1		 70
2.8
GR820ST 7.9
5/16		 15
0.5		 20
70		 300
11.8		 150
5.9		 200
7.9		 110
4.3		 380
15.0		 410
16.1		 410
16.1		 220
8.7		 260
10.2		 70
2.8
GR830ST 7.9
5/16		 15
0.5		 30
100		 300
11.8		 150
5.9		 200
7.9		 150
5.9		 450
17.7		 410
16.1		 490
19.3		 265
10.4		 260
10.2		 110
4.3
GR850ST 7.9
5/16		 15
0.5		 50
165		 300
11.8		 150
5.9		 280
11.0		 150
5.9		 550
21.7		 410
16.1		 600
23.6		 325
12.8		 260
10.2		 110
4.3

※ The specifications are subject to be changed without previous notice for improvement.
