Spring Rewind Type (Stainless water hose)
Model Name
HR1310H
Data
-
Manufacturer information
provider logo
REELTEC

Reel manufacturer, Air reel, Gas reel, Hose reel, Hose for crane and more

Problem with product info?
Update request
Manufacturer
REELTEC
Product Type
Machine
Brand
-
SKU
137767
Product Name
Spring Rewind Type (Stainless water hose)
Model Name
HR1310H, HR1315H, NR1310H, NR1315H, GR1310H, GR1315H, S1310B, S1315B, S1310N, S1315N, S1310G, S1315G, HR1310N, HR1315B, HR1310N, HR1315N, HR1310G, HR1315G
Size
-
Weight
-
Product Details

Design & Structure

  • Reels are all stainless steel construction with strong corrosion resistant.
  • Compact design with all bolted assembly without welding.
  • Dual frame, guide plate & ball bearing support.
  • Exclusive water reel for Food Company, facility of communal feeding.
  • Special heat-treatment spring & non-corrosive ratchet.
  • Wide usage with 120 degree swing.
  • Standard inlet 90º balanced pressure swivel joint(NBR Packing)
  • Inlet & Outlet connection threads are female NPT.
  • Apply easy-to-use Nozzle or Water gun (Option).







1. Non Toxic Hose Reel for Hot & Cold Water


Hose Material Max Pressure Working Temperature
PVC Synthetics 10Kgf/㎠ 70℃



MODEL NO. HOSE Spec Rewinding Length Shoot Type Installation
BR1310H Ø13*Ø23 10M Ball Valve Wall Ceiling
BR1315H 15M
NR1310H 10M Nozzle
NR1315H 15M
GR1310H 10M Power Gun
GR1315H 15M






2. Non-Toxic Hose Reel for High Temperature and Steam


Hose Material Max Pressure Working Temperature
EPDM Hose 20Kgf/㎠ - 30˚C ~ 120˚C



MODEL NO. HOSE Spec Rewinding Length Shoot Type Installation
S1310B Ø13*Ø23 10M Ball Valve Wall Ceiling
S1315B 15M
S1310N 10M Nozzle
S1315N 15M
S1310G 10M Power Gun
S1315G 15M

※ Tested rubber hose with non toxic drinking water by KCL (Korea Conformity Laboratories)






3. High Temperature Hose Reel




Hose Material Max Pressure Working Temperature
NBR Synthetics 20Kgf/㎠ 100˚C



MODEL NO. HOSE Spec Rewinding Length Shoot Type Installation
HR1310B Ø13*Ø23 10M Ball Valve Wall Ceiling
HR1315B 15M
HR1310N 10M Nozzle
HR1315N 15M
HR1310G 10M Power Gun
HR1315G 15M






Accessory

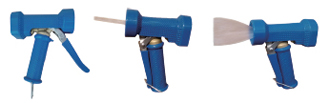

Power Water Gun

1. High durability by scientific design and No corrosion with brass material, Stainless and silicon.
2. Control to High Pressure Direct & Spray by lever.

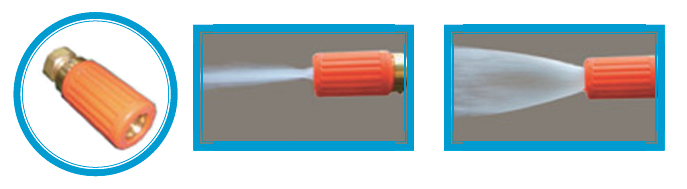

Spray Nozzle

1. Convenient use with Screw Type.
2. Control to High Pressure Direct & Spray by turn right & left.
3. Apply rubber cover of high durability for handle.
