Dust Measuring Device, Carbon Dioxide Measuring Device, Carbon Dioxide Sensor

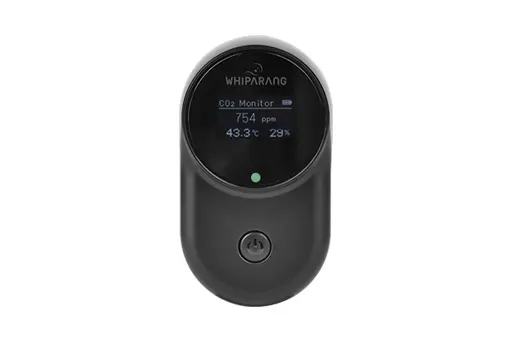

PoC Carbon Dioxide Measuring Device for real-time check anytime, anywhere
The PoC Portable Carbon Dioxide Measuring Device can conveniently check the carbon dioxide concentration / temperature / humidity at the same time with the non-dispersive infrared anytime, anywhere in real-time.
OVERVIEW
The Carbon Dioxide Measuring Device accurately measures with its Non-distributed infrared in real-time
 Non-distributed infrared |
 Intuitive Display |
 Real-time Measurnent |
 |
 Rechargeable Battery |
 Easy to Portability |
 Convenient Usage |
MADE IN KOREA
Developed / Produced 100% in Korea
The product is developed, produced, and managed 100% in Korea with rigorous quality management and reliable A/S.
HOW TO
Description & Operation of Each Designation
 |
Power & Mode Selection Button | |
|
Power Button
|
||
|
Mode Selection Button
|
||
|
|
|
|
|
Concentration & Status Display LED
|
||
LED Color by Carbon DioXide Dust Concentration
SPECIFICATIONS
| Brand Name | Whiparang |
| Model name | POC2021-2 |
| Power outlet | Rechargeable lithium polymer battery (DTP 701635) |
| Charging specification | USB micro 5Pin |
| Charging time | About 90min |
| Continuous usage time | About 5hours |
| Size | Body 51 x 90 x 31mm (with cradle 73.5 x 41 x 30mm) |
| Weight | body 56.7g (85g including cradle) |
| KC certification number | R-R-P0C-POC2021-2 |
| Carbon dioxide measuring method | Non-dispersive infrared |
| Carbon dioxide measuring range | 0 ~ 5000ppm |
| Temperature/Humidity measuring range | -40 ~ 99 ℃ / 0 ~ 100% |
| Operating environment | -10 ~ 60 ℃, 0 ~ 90% |
| Storage temperature range | -40 ~ 80℃ |
| Battery capacity | 3.7V, 350mAh |
| Input voltage | 5V |
