product Image

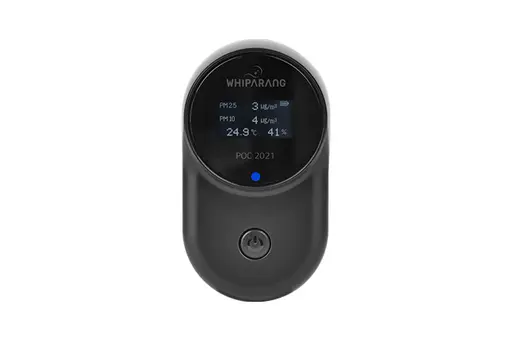

Portable Fine Dust Measuring Device
Model Name
PoC2021
Series
Dust Measuring Device
View All
Data
-
Manufacturer information
provider logo
PILLARS OF CREATION

Dust Measuring Device, Carbon Dioxide Measuring Device, Carbon Dioxide Sensor

Problem with product info?
Update request
Manufacturer
PILLARS OF CREATION
Product Type
Machine
Brand
-
SKU
139099
Product Name
Portable Fine Dust Measuring Device
Model Name
PoC2021
Size
-
Weight
-
Product Details

Whiparang Fine Dust Measuring Device for real-time check anytime, anywhere

The PoC Portable Fine Dust Measuring Device can conveniently measure PM2.5 ultrafine dust / PM10 fine dust / temperature / humidity at the same time with the laser sensor anytime, anywhere in real-time.





OVERVIEW

The Portable Fine Dust Measuring Device accurately measures with its precise laser sensor in real-time


Laser Sensor


Intuitive Display


Real-time
Measurement


Rechargeable Battery


Easy to Portability


Convenient Usage



MADE IN KOREA

Developed / Produced 100% in Korea
The product is developed, produced, and managed 100% in Korea with rigorous quality management and reliable A/S.

HOW TO

Description & Operation of Each Designation

Power Button

  • The power turns ON if you press the button for the first time. The power turns OFF if you press for 2 seconds.
  • After the power is ON, the Auto OFF time is 10 min. (It displays for 10 min and turns off).)
  • If an external charging terminal is connected, the device will display dust concentration continuously without Auto OFF.

Mode Selection Button

  • If you briefly press the power button, the order “PM2.5 → PM10 → PM2.5/PM10 → PM2.5/PM10/Temperature/Humidity” will repeat.

Concentration & Status Display LED

  • You can intuitively know fine dust/ultrafine dust/temperature/humidity on the Concentration & Status Display LED.





LED Color by Fine Dust Concentration





SPECIFICATIONS





Brand name Whiparang
Model name PoC2021
Power outlet Rechargeable lithium polymer battery (DTP 701635)
Charging specification USB micro 5Pin
Size Body 51×90×31 (including cradle 73.5×41×30)
Weight Body 78 g (106 g including cradle)
Certification number R-R-P0C-POC2021
Fine dust measuring range 0 ~ 999ug/㎥  (PM2.5, PM10)
charging time About 90 minutes
Continuous usage time About 2 hours
Temperature/Humidity measuring range -25℃ ~ 60℃ / 0 ~ 90%
Fine dust measuring method Laser Light Scatter
Usage temperature -10 ~ 60℃
Battery capacity 3.7V, 350mAh
Input voltage 5V
