Millenium Optical System
Non-Polarizing Plate Beamsplitters
Model
Series
Beamsplitters / Partial Reflectors
Transaction Process
Please contact the manufacturer/supplier.
Payment
Contact the manufacturer/supplier.
Delivery
Contact the manufacturer/supplier.
Shipment
Contact the manufacturer/supplier.
Origin
Contact the manufacturer/supplier.
Description

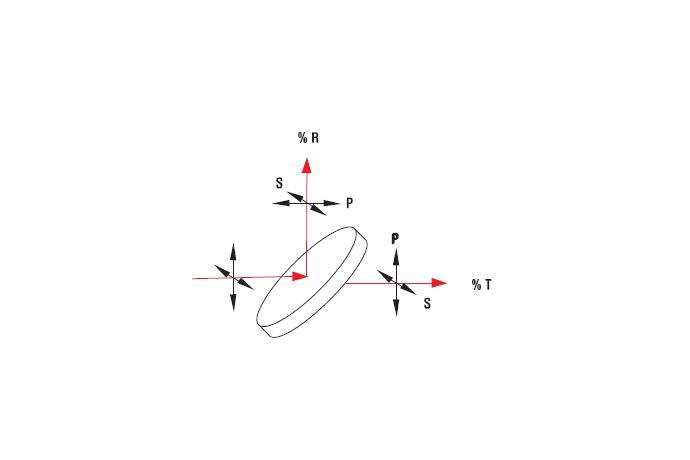

Non-Polarizing Plate Beamsplitters divide an incident, monochromatic beam into reflected and transmitted components with the specified intensity ratio. They are designed for applications in which it is necessary to maintain the polarization character-istics of the incident beam. The plate is coated on one side with an all dielectric, non-polarizing, partial reflection coating, and on the reverse side with a high efficiency, narrowband, anti-reflection coating.
TO ORDER : Specify part number as follows: Substrate Code + Coating Code
Example: BK7; 25.4mm diameter; 633nm; 70% R; 30% T: NPP 26 K 063 70/30
Other substrate materials, specifications, wavelengths and reflectance values and angles of incidence can be provided upon request. Please contact our sales department for assistance.
