High Power Polarizing Cube Beamsplitters
Model Name
-
Series
Polarizers / Wave Plates
Data
-
Manufacturer information
provider logo
Millenium Optical SystemOptical equipment components manufacturer, Lens, Prism, Polarizing plate, Mirror, ZnSe, IR filter, Thin film coating
Problem with product info?
Update request
Manufacturer
Millenium Optical System
Brand
-
SKU
43491
Product Name
High Power Polarizing Cube Beamsplitters
Model Name
-
Size
-
Weight
-
Product Details

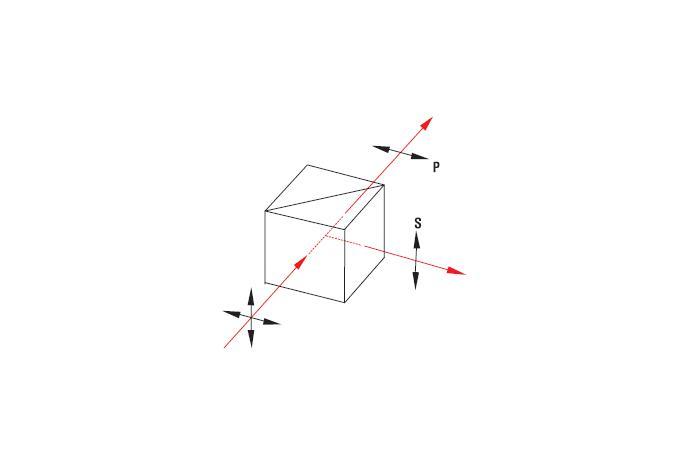

High Power Polarizing Cube Beamsplitters were specifically developed for use in high powerpulsed and CW laser applictions. They are formed from two right angle, 45。prisms opticallycontacted together. The hypotenuse is coated with an all dielectric, polarization sensitive coatingdesigned to separate an incident, unpolarized, monochromatic beam into its S and P polarizationcomponents.
The extinction ratio (TP/TSs) exceeds 200:1 in the transmitted beam. The twoorthogonally polarized beams emerge from the cube at 90。with respect to each other. All entrance and exit surfaces are coated with a high efficiency, narrowband, anti-reflection coating.



Millenium Optical System High Power Polarizing Cube Beamsplitters

TO ORDER : Specify part number as follows: Substrate Code + Coating Code
Example: 12.7 mm dimensions: 1064nm: HC 13 K 106


Other substrate materials, specifications and wavelengths can be provided upon request. Please contact our sales department for assistance.
