Broadband Rmax High Reflection coatings
Model Name
-
Data
-
Manufacturer information
provider logo
Millenium Optical SystemOptical equipment components manufacturer, Lens, Prism, Polarizing plate, Mirror, ZnSe, IR filter, Thin film coating
Problem with product info?
Update request
Manufacturer
Millenium Optical System
Brand
-
SKU
43468
Product Name
Broadband Rmax High Reflection coatings
Model Name
-
Size
-
Weight
-
Product Details

Broadband Rmax High Reflection coatings are designed to provide high reflectance over a broad spectral region. These all dielectric coatings exhibit very low loss due to absorption and scatter. They are less sensitive to angle of incidence than laserline RMAX mirror coatings, which makes them wellsuited for the steepy curved surfaces of high numerical aperture mirrors, of for applications in which it is necessary to vary the angle of incidence.

Due to the large number of layers used to cover to cover the broad range, absorption and scatteringare somewhat higher than Laserline coatings (LHR) resulting in a lower damage threshold



Millenium Optical System Broadband Rmax High Reflection coatings

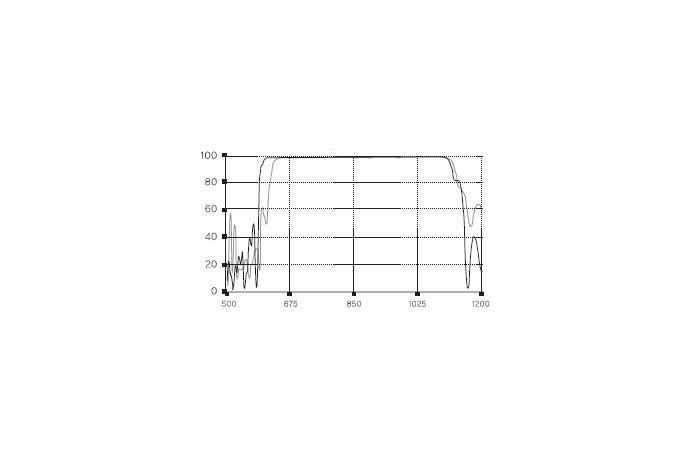

Standard Wavelength Ranges (Note: Contact us for any custom coating)
425-650 nm 650-1000 nm
1000-1500 nm


These and other coatings are available from stock on a variety of substrates. Other wavelengths and angles of incidence can be provided upon request. Please contact us for assistance with fulfilling your requirements.


Nd:YAG Multi-wavelength Rmax High Reflection coatings provide high reflectance at both 1064 and 532 nm. These all dielectric coatings are sensitive to polarization, wavelength and angle of incidence. They are durable and highly resistant to laser damage.



Millenium Optical System Broadband Rmax High Reflection coatings  1



Standard Wavelength Ranges: λ₁: 1064 nm λ₂: 532 nm


These and other coatings are available from stock on a variety of substrates. Other wavelengths and angles of incidence can be provided upon request. Please contact us for assistance with fulfilling your requirements.

Millenium Optical SystemOptical equipment components manufacturer, Lens, Prism, Polarizing plate, Mirror, ZnSe, IR filter, Thin film coating
MOS is one of the few companies that possess extensive experience with Lens fabrication using a wide range of UV, Visible, and IR substrates. Unlike Lenses that are manufactured by a third source, all MOS Lenses are manufactured and tested in-house to ensure consistent quality. MOS Filters are carefully manufactured and measured to ensure the most accurate wavelength selection available. From our standard color glass Filters to accurate, multi-component Filter systems, MOS is a total Filter solution provider. MOS has manufactured the highest quality Optical components, Thin Film Coatings and Optical Assemblies for use in Medical, Semiconductor and Industrial Applications.
