G33, G38

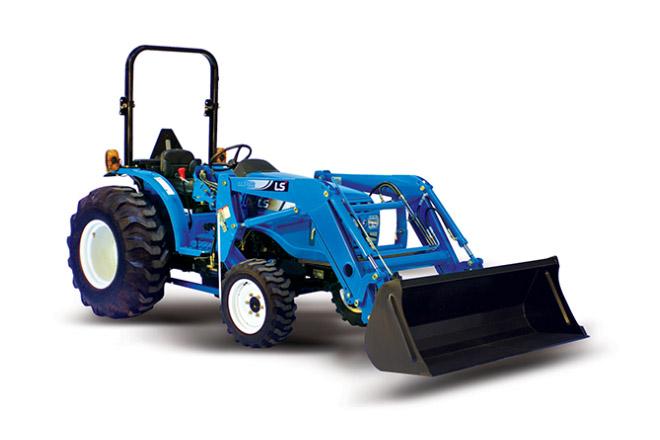

Synchro Shuttle - G33, G38
Features
Fuel Efficient Engine Fuel-efficient engine with low noise and vibration provide comfortable operation. | Semi Flat operator platform Fuel-efficient engine with low noise and vibration provide comfortable operation. | Synchro Shuttle lever Makes changing direction easier than competitive non-shuttle gear models. |
Hydrostatic Power Steering Makes turning easier, improves control and reduces fatigue. | Multi Gear Transmisson The multi-gear transmission enables a variety of tasks under various working conditions. | Easy open one-piece hood Provides accessibility for easy maintenance. |
Dry Air cleaner Dry Air cleaner provides good accessibility and ensures longer engine life. | Hydrostatic transmission Maximizes ease of use with effortless, clutch-less and instant speed and directional changes with a simple push of the pedals. | Adjustable Seat Adjustable seat offers comfortable working condition during long operation. |
Specification
| Category | G33 | G38 | |
| Dimensions & Weight | Overall length, Bumper to link (mm) | 3164 | |
|---|---|---|---|
| Overall width witd tires (mm) | 1374 | 1380 | |
| Wheelbase (mm) | 1674 | ||
Overall height to top ROPS (mm) | 2241 | 2316 | |
| Total weight without ballast (kg) | 1184 | 1220 | |
| Tires | Front | 7-14 | 7-16 |
| Rear | 11.2-24 | 12.4-24 | |
| PTO | Type (options) | Independent | |
| Mid (rpm) *options | 2000 | ||
| Rear (rpm) | 540 / 750 / 1000 | ||
| Hydraulic | Control system (options) | Position | |
| Implement pump (lpm) | 31.2 | ||
| Category, 3 pt hitch | CAT I | ||
| Hitch lift capacity, Link end (kgf) | 820 | ||
| Remote Ports (options) | 2 (rear) | ||
| Engine | Type | 4-Stroke, Indirect-injection, Water-cooled | |
| Model | LS L3BL | LS L3AL | |
| Emission | EPA & CARB Interim Tier4 EC Stage IIIA | ||
| Engine Hp (kW) | 33 (24.6) | 38 (28.3) | |
| PTO Hp | Gear: 28.4 HST: 26.6 | Gear: 33.4 HST: 31.2 | |
| Rated speed (rpm) | 2600 | ||
| Displacement (cc) | 1915 | 2003 | |
| Fuel Tank Capacity (L) | 28 | ||
| Traveling system | Transmission Type (options) | Synchro Shuttle / HST | Synchro Shuttle / HST |
| No. of speed | 12Fx12R (Synchro shuttle) / 3 range (HST) | 12Fx12R (Synchro shuttle) / 3 range (HST) | |
| Forward Speed (Km/h) | 1.2~23.4 (Synchro Shuttle) / 0 ~22.5 (HST) | 1.3~24.6 (Synchro Shuttle) / 0 ~23.6 (HST) | |
