High Voltage DC Relay

Model

Series

DC Component


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.


Description

High Voltage DC Relay

LS ELECTRIC high voltage DC Relay serves to supply and disconnect the DC power, and contains hydrogen and nitrogen gas, which is optimized to withstand production and breaking. As a result, it has excellent electrical durability, is compact in size, and produces low noise.



Features

ㆍCompact Design

Achieved a compact size by filling with hydrogen and nitrogen gas to improve breaking performance



ㆍProven Safety

Withstands a high value of short circuit current



ㆍSuperior Reliability

Excellent performance with electrical and mechanical endurance IEC, UL, CCC certified



Specification

GPR

Rating
Model GPR010 GPR040 GPR100
Number of poles 1 Pole 1 Pole 1 Pole
Operating voltage, Ue DC 450V DC 450V DC 450V
Conventional thermal current, Ith 10A 40A 100A
Short time withstand current 2Min 15A 100A 225A
15Min - 60A 150A
Electrical durability 10A, 450VDC, 150,000cycles
(at 360cycles/Hr)(only Making)
40A, 450VDC, 1,000cycles
(at 1,200cycles/Hr)
100A, 450VDC, 1,000cycles
(at 1,200cycles/Hr)
Size, W × H × D( mm ) 56 × 28 × 45 67 x 35 x 47 81 × 39 × 70
Certification



Rating
Model GPR150 GPR250 GPR400
Number of poles 1 Pole 1 Pole 1 Pole
Operating voltage, Ue DC 450V DC 450V DC 450V
Conventional thermal current, Ith 150A 250A 400A
Short time withstand current 2Min 320A 500A 800A
15Min 225A 350A 600A(7min)
Electrical durability 150A, 450VDC, 1,000cycles
(at 1,200cycles/Hr)
250A, 450VDC, 1,000cycles
(at 360cycles/Hr)
400A, 450VDC, 1,000cycles
(at 360cycles/Hr)
Size, W × H × D( mm ) 81 × 39 × 70 92 × 45 × 87 100 × 58 × 91
Certification



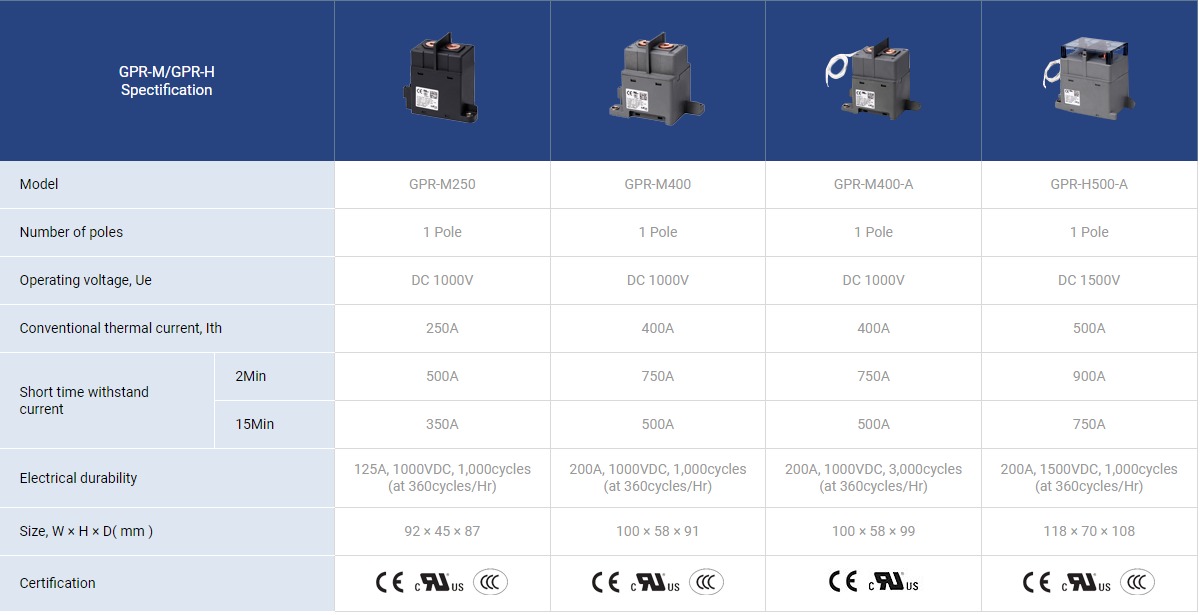

GPR-M/GPR-H

GPR-M/GPR-H
Spectification
Model GPR-M010 GPR-M040 GPR-M100 GPR-M150
Number of poles 1 Pole 1 Pole 1 Pole 1 Pole
Operating voltage, Ue DC 600V DC 1000V DC 1000V DC 1000V
Conventional thermal current, Ith 10A 40A 100A 150A
Short time withstand
current
2Min - 100A 225A 320A
15Min 15A 60A 150A 225A
Electrical durability 5A, 600VDC, 10,000cycles
(at 360cycles/Hr)(only Making)
20A, 1000VDC, 1,000cycles
(at 360cycles/Hr)
50A, 1000VDC, 1,000cycles
(at 360cycles/Hr)
75A, 1000VDC, 1,000cycles
(at 360cycles/Hr)
Size, W × H × D( mm ) 56 × 28 × 45 67 × 35 × 47 81 × 39 × 70 81 × 39 × 70
Certification



Download

Catalog-LS ELECTRIC-DC Component for Renewable Energy Solution
