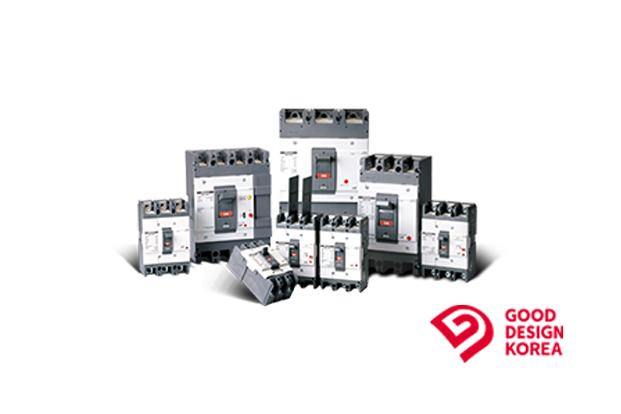

Metasol MCCB (Metasol Molded Case Circuit Breaker)
Model Name
-
Series
Low Voltage (Device)
Data
Catalog- LS ELECTRIC-Low Voltage (Device)-Metasol MCCB
Manufacturer information
provider logo
LS ELECTRIC

Smart Power Solution, Low Voltage, Smart Automation Solution, PLC, Smart Railway Solution, Signaling System and more

Problem with product info?
Update request
Manufacturer
LS ELECTRIC
Product Type
Machine
Brand
-
SKU
132968
Product Name
Metasol MCCB (Metasol Molded Case Circuit Breaker)
Model Name
-
Size
-
Weight
-
Product Details

Metasol MCCB
Metasol Molded Case Circuit Breaker

Molded Case Circuit Breaker/Earth Leakage Circuit Breaker

Same external dimensions as MCCB and ELCB

ㅇ Rated Current: 3~1200A

ㅇ Breaking capacity (Icu): 10~85kA



Features

Metasol MCCB

ㆍSeries : AB

ㆍAF : 30AF, 50AF, 60AF, 100AF, 125AF, 250AF, 400AF, 600AF, 800AF, 1200AF

ㆍPole: 2P, 3P, 4P

ㆍstandards :
    - IEC 60947-1, IEC 60947-2 CB
    - GB 14048.2 CCC



Metasol ELCB

ㆍSeries : EB

ㆍAF : 30AF, 50AF, 60AF, 100AF, 125AF, 250AF, 400AF, 600AF, 800AF, 1200AF

ㆍPole: 2P, 3P, 4P

ㆍstandards :
    - IEC 60947-1, IEC 60947-2 CB
    - GB 14048.2 CCC



Description

Metasol MCCB

Type 30AF 50AF 60AF 100AF 125AF 250AF 400AF 800AF 1000AF 1200AF
ABN - ABN50c
14kA
ABN60c
14kA
ABN100c
18kA
- ABN250c
26kA
ABN400c
37kA
ABN800c
37kA
- -
ABN100d
26kA
ABN100e
31kA
ABS ABS30c
14kA
ABS50c
18kA
ABS60c
18kA
- ABS125c
37kA
ABS250c
37kA
ABS400c
50kA
ABS800c
65kA
ABS1000c
65kA
ABS1200c
65kA
ABH - ABH50c
50kA
- - ABH125c
50kA
ABH250c
50kA
ABH400c
65kA
- - -
ABL - - - - ABL125c
60kA
ABL250c
60kA
ABL400c
85kA
ABL800c
85kA
ABL1000c
85kA
ABL1200c
85kA



Metasol ELCB

Type 30AF 50AF 60AF 100AF 125AF 250AF 400AF 800AF 1000AF 1200AF
EBN - EBN50c
14kA
EBN60c
14kA
EBN100c
18kA
- EBN250c
26kA
EBN400c
37kA
EBN800c
37kA
- -
EBS EBS30c
14kA
EBS50c
18kA
EBS60c
18kA
- EBS125c
37kA
EBS250c
37kA
EBS400c
50kA
EBS800c
65kA
EBS1000c
85kA
EBS1200c
85kA
EBH - EBH50c
50kA
- - EBH125c
50kA
EBH250c
50kA
EBH400c
65kA
- - -
EBL - - - - - - EBL400c
85kA
EBL800c
85kA
- -
