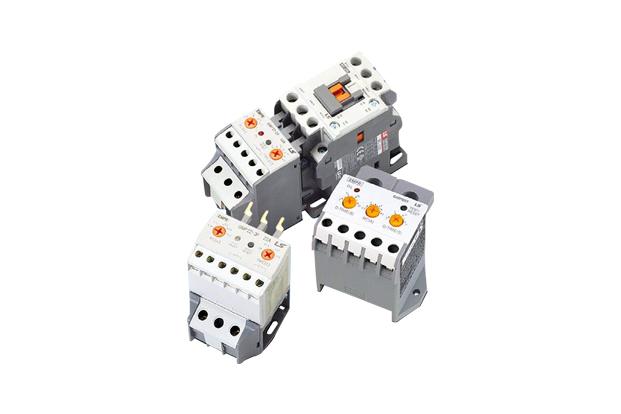

product Image
Electronic Motor Protection Relay
Model Name
GMP
Series
Low Voltage (Device)
Data
Catalog(Electric Product)-LS ELECTRIC-Low Voltage (Device)-Electronic Motor Protection Relay (GMP)
Manufacturer information
provider logo
LS ELECTRIC

Smart Power Solution, Low Voltage, Smart Automation Solution, PLC, Smart Railway Solution, Signaling System and more

Problem with product info?
Update request
Manufacturer
LS ELECTRIC
Product Type
Machine
Brand
-
SKU
132986
Product Name
Electronic Motor Protection Relay
Model Name
GMP
Size
-
Weight
-
Product Details

GMP
Electronic Motor Protection Relay

• Definite/inverse time protection for a variety of ratings

• Ground fault protection model

• LED based display of cause of failure

• MC direct coupling, penetration, and terminal type sharing



Features

Convenience

ㆍIntegrated digital motor protection relay using MCU (Microprocessor Control Unit)

ㆍApplicable to inverter circuits

ㆍSaves the recent cause of failure

ㆍShares the terminal contact and penetration type

ㆍPerfect connection with LS digital contactor Metasol MC

ㆍVarious installation methods

ㆍWide current control range



Reliability

ㆍAcquired and S-Mark (safety certification), first in the industry

ㆍRemarkable noise reduction

ㆍInverse time characteristic good for motor protection



Specification

Rating Specification
Tolerance Current : ±5%, Time : ±5% (or ±0.5sec)
Frequency 50/60Hz
Aux. contact Ratings 5A/250VAC Resistive load
Insulation resistance Min 100㏁ at 500V DC
Lightning impulse voltage 1.2×50㎲ 5kV With standard waveform (IEC60255-22-5)
Fast Transient Burst 2kV/1min (IEC61000-4-4)
Environment Operation : -25~70℃, Storage : -30~80℃, Relative humidity : 30~90%RH (No freezing)
Trip indicator Red LED (2CT : 1, 3CT : 2)
Application specification UL508, IEC60947-1
