GIPAM10
Series
Protection/Measurement/Meter (Device)
View All
Data
Manual-LS ELECTRIC-Protection-GIPAM10
Manufacturer information
provider logo
LS ELECTRIC

Smart Power Solution, Low Voltage, Smart Automation Solution, PLC, Smart Railway Solution, Signaling System and more

Problem with product info?
Update request
Manufacturer
LS ELECTRIC
Product Type
Machine
Brand
-
SKU
133003
Product Name
Protection
Model Name
GIPAM10
Size
-
Weight
-
Product Details

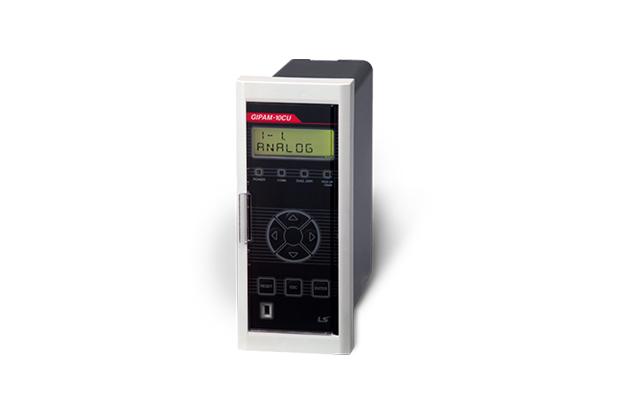

GIPAM10

Economic multifunction digital power protection monitoring device with various protection and measurement elements.



Features

Protection Function

ㆍVarious protection factor (12 protection factors)

ㆍEvent and fault recording (Max 32 recordings)

ㆍVarious measurements and monitoring functions (3 measurements)



Convenience Function

ㆍEasily connects to PC manager

ㆍEasy group setting



Protection Factor

Type Function Device No. GIPAM10CU GIPAM10CR GIPAM10VO GIPAM10NZ
Protection OCR 50/51 ● ● - -
OCGR 50/51N ● ● - -
NSOCR 46 ● ● - -
Reclosing 79 - ● - -
OVR 59 - - ● -
UVR 27 - - ● -
POR 47P - - ● -
OVGR 64 - - ● ●
SGR 67G - - - ●
DGR 67N - - - ●



Specification

Type Specification
Rating Wiring  3P3W, 3P4W
Frequency  60Hz or 50Hz
Voltage  PT: 110V, GPT: 190V
Current  CT: 5A or 1A
 ZCT: 1.5mA
Control voltage  AC/DC 110/220V (or AC/DC 88V~264V))
Power consumption  Normal: Max.20W, Operating: Max.25W
Burden  PT: Max. 0.5VA
 CT: Max.1.0VA
Input contact  Digital Input, AC/DC 110V or AC/DC 220V
Contact Output Trip Rated  AC250V 16A/DC30V 16A  Resistive Load
Open  380VAC, 125VDC/16A
Alarm Rated  AC240V 3A/DC30V 3A  Resistive Load
Open  240VAC, 30VDC/5A
Insulation Resistance  Over DC 500V 100㏁
Insulation Voltage  AC 2kV (1kV)/for 1 min
Impulse Voltage  AC 5kV (3kV) Over 1.2 × 50㎲
Overload Withstand Current circuit  2 In for 3 hours
 20 In for 2 seconds
Voltage circuit  1.15 Vn for 3 hours
Fast Transient Disturbance   Power Input 4kV, Other Input 2kV
ESD, Electrostatic Discharge   Air 8kV, Contact 6kV
Operation temperature  -10℃ ~ +55℃ (14℉~131℉)
Storage Temperature  -25℃ ~ +70℃ (-13℉~158℉)
Humidity   Within 80% RH, no condensation
Altitude   1000m and below
Others  Non-impact place, Non-air pollution place
Standard  KEMC1120, IEC60255
Dimension (W×H×D)  100 × 240 × 217 (mm)
Weight  3kg
