Kyungdong Electric

Kyungdong Electric

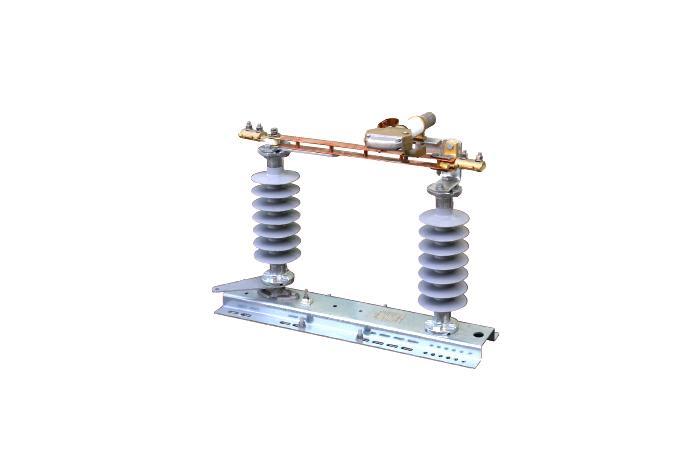

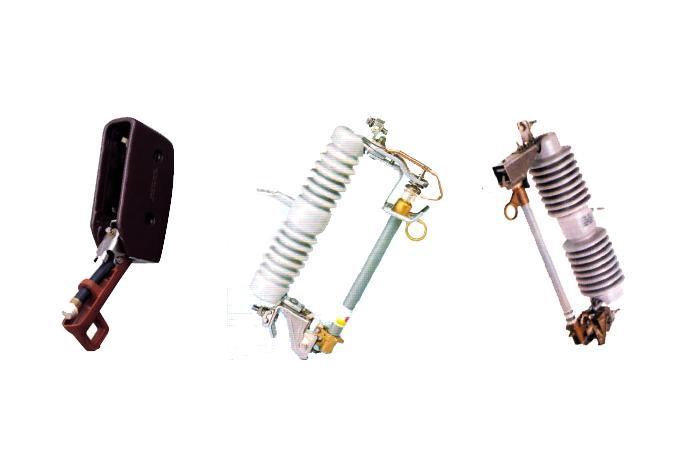

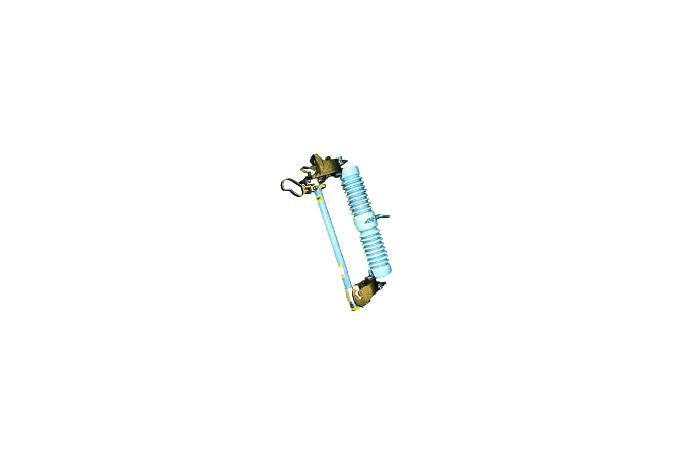

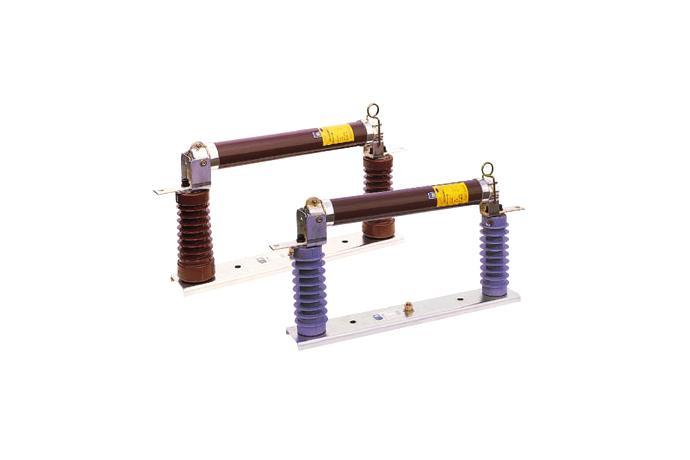

High voltage Cut Out Switches

Model

Series

Products


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

The Republic of Korea


Description

High-Voltage Cut-Out Switches are used to protect equipment from overcurrent due to short circuit or ground accidents or overload. They are installed on the primary side of a current transformer or main units. When a fault current flows, the fuse link gets blown and produces arc heat which causes the material of the inner wall of the fuse barrel to disassemble and create insulating gas. This product controls the arc and blocks the fault current.



Specifications

Category (BIL) 60 125 150 Category (BIL) 60 125 150
Category (kV) 6.9 25.8 25.8 Leakage (inch) - 11 26
Maximum voltage (kV) 7.2 27 Power frequency
withstand voltage (kV) Closing/opening
Dry 22/45 42 70
Rated current (A) 100 Wet 22/30 36 60
Rated frequency (Hz) 60 Impulse withstand voltage (kV)
(1.2X50㎲)
55/65 125 150
Rated breaking current(kA) Asymmetric 2.2 10 12 Applied standards ESB 151-085~097
ANSI C37, 41/42
Symmetric 1.5 7.1 8



Product Dimensions





Kyungdong Electric High voltage Cut Out Switches
