Manufacturer
Kyungdong Electric
Product Type
Machine
Brand
-
SKU
50004
Product Name

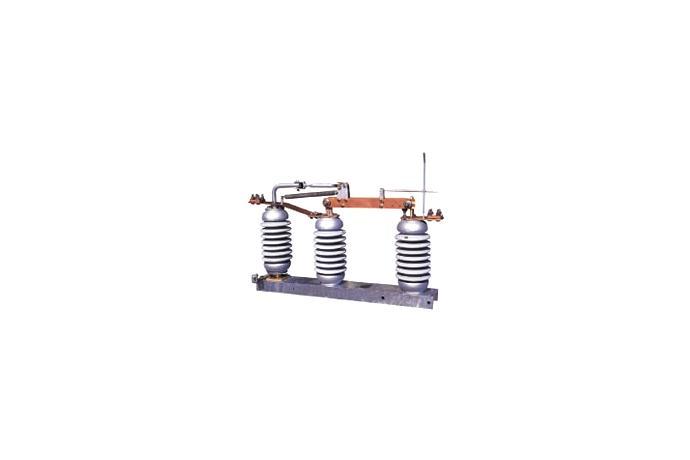

Disconnecting Switches
Model Name
SKD-V2, V7
Size
-
Weight
-
Product Details
Application scope
For use in ambient temperature within the range of -25℃ to +40℃
Applied to a disconnector used in substations at an altitude of less than 1,000m.
Standards
Rated voltage : 25.8kv~72.5kv 60Hz
Rated current : See Types
■ Disconnecting Swich
| Type | Rated Voltage | Rated Current | A | B | C | D | E |
|---|---|---|---|---|---|---|---|
| SKD-V2 | 25.8kV | 400~2000A | 1000 | 950 | 125 | 80 | 500 |
| SKD-V7 | 72.5kV | 400~2000A | 1750 | 1650 | 150 | 100 | 1000 |
■ Disconnecting Swich (Motor Operating Divice)
