Description

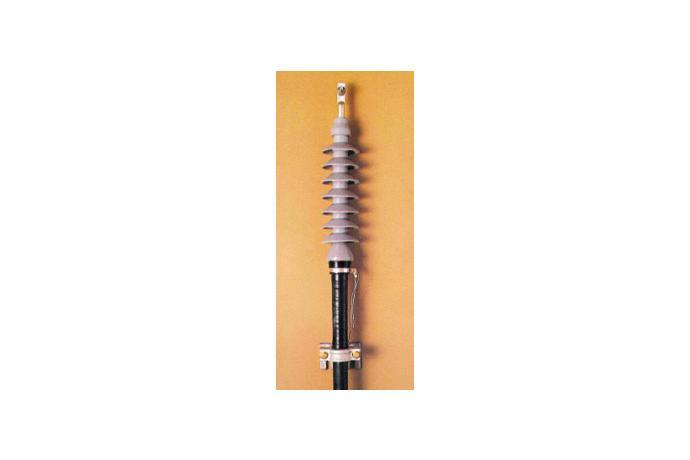

25㎸ Cable Terminator
Kyungdong’s 25kv Cable Terminator is an all-in-one contamination withstand cable terminator made for the first time in Korea in 1982 with newly developed technology. It provides outstanding insulation performance even in areas damaged by salt or pollution with its anti-pollution design (Design Registration 30-0502011).
■ Specifications
| Rated voltage | 25㎸ | DC withstand voltage | 105㎸ 15min |
|---|---|---|---|
| Impulse withstand voltage | 150㎸/240㎸ (below 1.2x50㎶ ) | RIV test | below 100㎶ |
| Applied wires | 60, 200, 325㎟ | Partial discharge | 25.8㎸ below 5pC |
| Frequency withstand voltage | Dry 65㎄/1min | Load cycle test | 43㎸/130℃(6 hour) / 30 Cycle |
| Dry 55㎄/6 hour | Leakage distance | 630㎜ / 800㎜ | |
| Wet 60㎄/10sec | Applied standards | IEEE 48(1996) |
■ Product Attributes
ㆍThe cable terminator made by Kyungdong provides outstanding insulation performance even in areas damaged by salt or pollution with its anti-pollution design (Design Registration 30-0502011).
ㆍAs a self-contained product, it can be installed in a small space
ㆍIt can be installed both indoors and outdoors.
ㆍStress cone and wings carry outstanding electrical properties and prevent leakage current in particular.
ㆍHigh-performance isolators provide excellent insulation and last as long as the cable.
ㆍThe silicon insulating grease and cleaning cloth are convenient to use during installation as they are contained in a special container and packaged using special coating. The cleaning solution does not evaporate even when stored for a long time.
■ Cable terminator 150BIL
Product structure
| No | Product name | Material |
| 1 | Terminal | Cu |
| 2 | Waterproof cap | EPDM |
| 3 | Insulating housing | EPDM |
| 4 | Bracket | Fe |
Product dimensions
| Product dimensions | Product dimensions(㎜) | Applied wire isolator thickness(㎜) | |||
| A | B | C | min | max | |
| 60㎟ | 298 | 77 | 57 | 24 | 27 |
■ Cable terminator 240BIL
Product structure
| No | Product name | Material |
| 1 | Terminal | Cu |
| 2 | Waterproof cap | EPDM |
| 3 | Insulating Housing | EPDM |
| 4 | Stress cone | EPDM |
| 5 | Ground band | SUS |
| 6 | Ground wire | CU |
Product dimensions
| Wire thickness | Product dimensions(㎜) | Applied wire isolator thickness(㎜) | |||
| A | B | C | min | max | |
| 38㎟ | 140 | 455 | 90 | 21.5 | 24 |
| 60㎟ | 24.5 | 29.5 | |||
| 100㎟ | 27.2 | 30.5 | |||
※ The connector must be installed by a professional with adequate construction training according to the construction manual in order to ensure quality.
