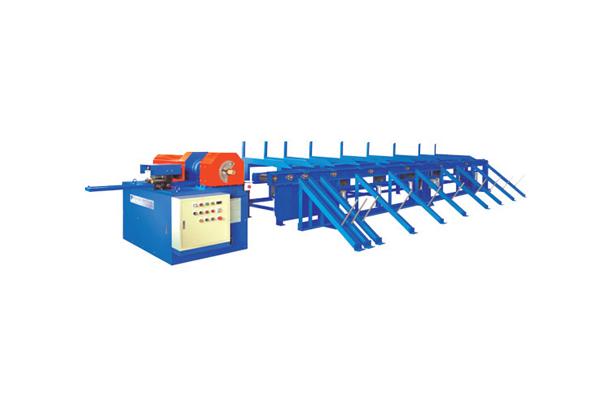

Product Features
- As this machine is for making anchor only , the productivity increases by 3 ~ 5 times.
- As it is easy to operate , even the apprentice can handle.
- The feeding & discharging of rebar are automatically done by the motor.
- It is possible for a single worker to make the anchor in such size of 5 ~10m.
- There is no angle difference even in large amount of rebar works.
- It is simple to install and to move the machine.
- The supply of parts & after-sales service are readily available by means of 100% localization.
Product Specifications
| Model | KBS-10-20 | KBS-10-20A | KBS-19-6 | |||
|---|---|---|---|---|---|---|
| Power consumption (kw) | Total power consumption (kw) | 9.2kw | Total power consumption (kw) | 11.2kw | Total power consumption (kw) | 11.2kw |
| HEAD | 5.5kw X 1 | HEAD | 7.5kw X 1 | HEAD | 7.5kw X 1 | |
| Supple table | 1.5kw X 1 | Supple table | 1.5kw X 1 | Supple table | 1.5kw X 1 | |
| Compressor | 2.2kw X 1 | Compressor | 2.2kw X 1 | Compressor | 2.2kw X 1 | |
| Electric | 380V 3Phase | 380V 3Phase | 380V 3Phase | |||
| Bending capacity (SD400 standard) | D10 ~ D16 | D10 ~ D19 | D19 ~ D25 | |||
| Bending angle | 15˚~ 180˚ | 15˚~ 180˚ | 15˚~ 180˚ | |||
| Working speed | 3.2sec/180˚ 9.5rpm | 3.2sec/180˚ 9.5rpm | 3.2sec/180˚ 9.5rpm | |||
| Supply Table Speed | 49m/min | 49m/min | 49m/min | |||
| Loading capacity (kg) | 2,000kg | 2,000kg | 2,000kg | |||
| Width of roller | 228mm | 228mm | 131mm | |||
| Dimensions (m/m)(L×W×H) | 9,050mm×2,300×1,050 | 9,050mm×2,300×1,050 | 9,050mm×2,300×1,050 | |||
| Weight (kg) | 1,500kg | 1,500kg | 1,500kg | |||
Efficiency / No.of bars at one time
| Model＼bar dia (mm) | KBS-10-20 | KBS-10-20A | KBS-19-6 | ||||
|---|---|---|---|---|---|---|---|
| D10 | D13 | D16 | D19 | D19 | D22 | D25 | |
| SD-400 | 20 | 15 | 11 | 6 | 6 | 4 | 2 |
| Fix roller | Ø50 | Ø64 | Ø78 | Ø78 | Ø74 | Ø84 | Ø94 |
| Rotary roller | Ø124 | Ø103 | Ø82 | Ø73 | Ø108 | Ø94 | Ø78 |
Minimum Length for Bending (Anchor)
Rebar 13mm 180˚- Bending (Minimum Length 320mm) (KBS-10-20A) |
Rebar 13mm 90˚- Bending (Minimum Length 270mm) (KBS-10-20A) |
Bending work for D22mm 4 pcs (KBS-19-6) |
Plan
