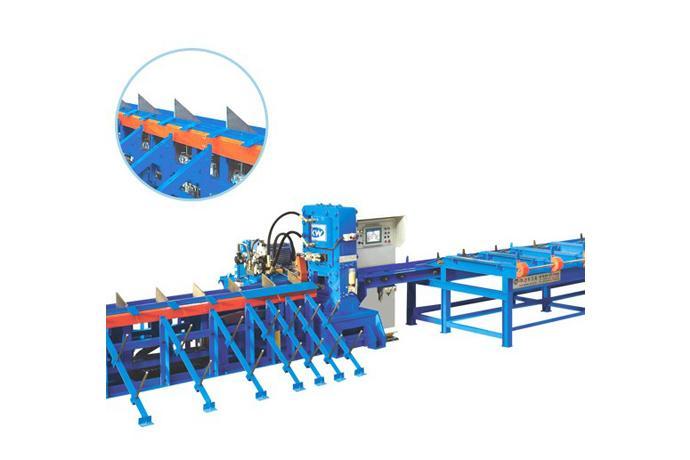

Product Features
- The operator can do an accurate work easily , by changing the button of the main control box from the complicated toggle switch to interactive touch screen, which indicates the whole work process in the screen.
- The function of self-diagnostic alarm enables the worker to cope with promptly and exactly.
- When the worker carries out the cutting 10 times by the length 1m , the system can do a consecutive operation by simply one touch-input.
- The method of the Cutting Measurement Control makes it possible for the worker to cut the rebar within the allowance 0.5mm, by adopting the ballscrew transmission type.
- In case the allowance is over 2mm , the operation will stop automatically and after correcting the measurement, then it keeps going on cutting.
- When the rebar impacts on the stopper , the shock-absorber in this system can prevent from any possible damage.
Product Specifications
| Power consumption (kw) | 38.5kw | Head unit | 22kw×1 |
|---|---|---|---|
| Feed conveyor unit | 1.5kw×2 | ||
| 1.5kw×2 | |||
| Supply table unit | 1.5kw×2 | ||
| Compressor | 7.5kw×1 | ||
| Electric | 220V / 380V 3Phase | ||
| R P M | 6rpm | ||
| Feed conveyor speed | 49m/min | ||
| Blade dimendion | 300mm×100×50 | ||
| Length of cuttable rebar | 12,000mm | ||
| Cutting length (mm) | 600 (min) ~ 12,000 (max) | ||
| Supply table speed | 7.2m/min | ||
| Loading capacity (kg) | 6,000kg | ||
| Dimensions (m/m) (L×W×H) | 26,500mm×3,900×1,855 | ||
| Weights (kg) | 10,000kg | ||
Efficiency / No.of bars at one time
| bar dia (mm) | D10 | D13 | D16 | D19 | D22 | D25 | D29 | D32 | D35 | D38 | D41 | D51 | Remarks |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SD400 | 27 | 21 | 16 | 15 | 12 | 10 | 8 | 7 | 5 | 4 | 3 | 2 | |
| SD500 | 27 | 21 | 16 | 14 | 11 | 9 | 7 | 6 | 4 | 3 | 2 | 1 | |
| SD600 | 27 | 21 | 16 | 13 | 10 | 8 | 6 | 5 | 3 | 2 | 1 | 1 |
Cutting unit |
Electric control panel |
Plan
