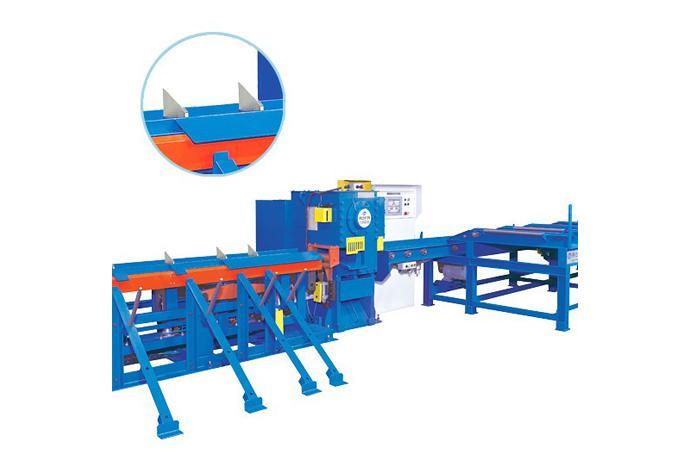

Auto Rebar Cutting System(KMC-60DS:Touch Screen Type)
Product Features
- Thid KMC-60DS has an interactive touch screen operating and cintrol typr which is changes form toggle switch type in a main control box.
Working process is display is displayed on the screen. Operators easily, accurately can operate machine.
- The machine has a self diagnosis alarm function. So, Operators can exactly and promptly respond to the working situation.
- If you want to operate “continued 10 time cuttings for 1 meter lenrh”. only one touch in the screen can make it.
- Cutting length control method adopt a “ball-screw feeding” way. The tolerance of cutting length is with-in ±0.5mm.
- If the cutting tolerance will be more than 2mm, autonmatically machine;s working(cutting works)is stopped.
So, the oder of size (length) could be revised. And then, exact cutting works could be cintinued.
- There is an equipment of cushion shock adsorbber.
It reduce the impact birden of the machine, when rebars bump to the stopper.
Product Specifications
| Power consumption (kw) | 24kw | Head unit | 7.5kw×1 |
|---|---|---|---|
| Feed conveyor unit | 1.5kw×2 | ||
| Supply table unit | 1.5kw×4 | ||
| Compressor | 7.5kw×1 | ||
| Electric | 220V / 380V 3Phase | ||
| R P M | 27rpm | ||
| Feed conveyor speed | 49mm/min | ||
| Blade dimension | 300mm×100×50 | ||
| Cutting length (mm) | 600 (min) ~ 12000 (max) | ||
| Supply table speed | 7.2m/min | ||
| Loading capacity (kg) | 6000kg | ||
| Dimensions (m/m) (L×W×H) | 26,500mm×3,460×1,740 | ||
| Weights (kg) | 10,000kg | ||
Efficiency / No.of bars at one time
| bar dia (mm) | D10 | D13 | D16 | D19 | D22 | D25 | D29 | D32 | D35 | D38 | D41 | Remarks |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SD400 | 27 | 19 | 15 | 11 | 9 | 7 | 5 | 4 | 2 | 2 | 1 | |
| SD500 | 26 | 16 | 13 | 9 | 7 | 5 | 4 | 3 | 2 | 1 | 1 |
Menu of touch screen
Plan
