“KM-Super Series” Ultrasonic Metal Welder has the most rapid progress of industrialization industry metal welding applications, especially secondary batteries, lithium-ion battery in a production sector is considered as the best option. Automotive industry, as well as areas for welding the metal material surface and the surface of the defined area, in the electronic component manufacturing, and excellent performance.

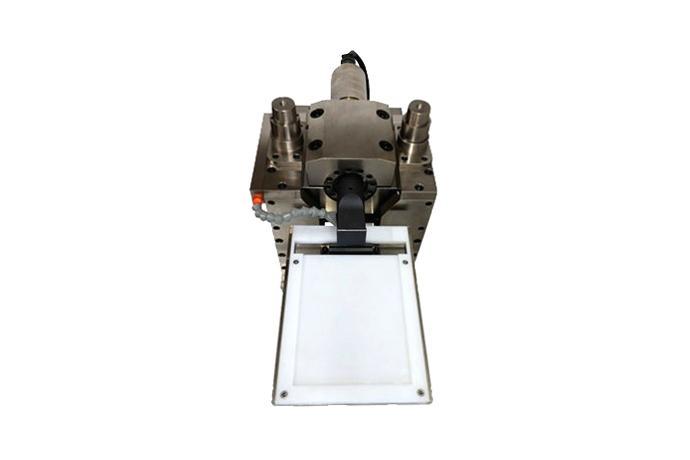

KM-20 Series Actuator

Frequency : 20Khz

Cylinder : 125mm

Air Pressure : Dry & Clean Min 4.0 ~ Max 6.5 Bar

Size : 250mm X 500mm X 350mm

Weight : 40kg

Voltage : 230V ±15% VAC / 50~60HZ

Application Area

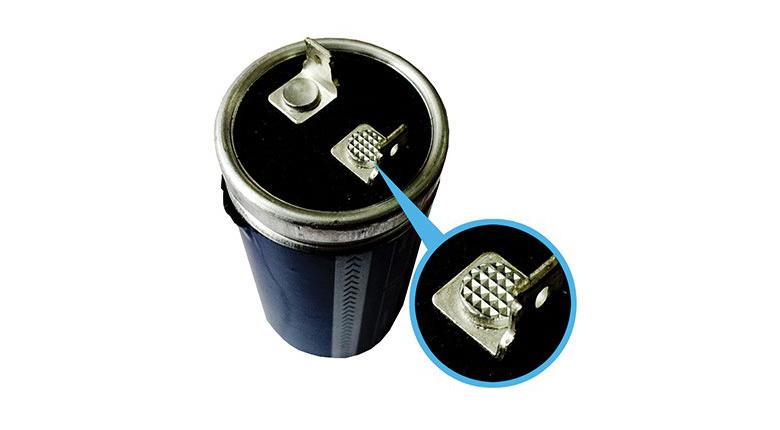

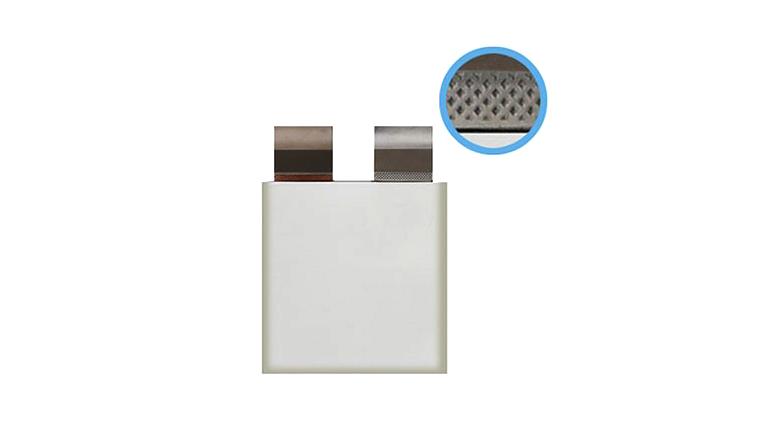

Lithium-Secondary Battery

Cu, Al Foil by Ni, Al Tap

Tap by Tap

Tap by Metal bar

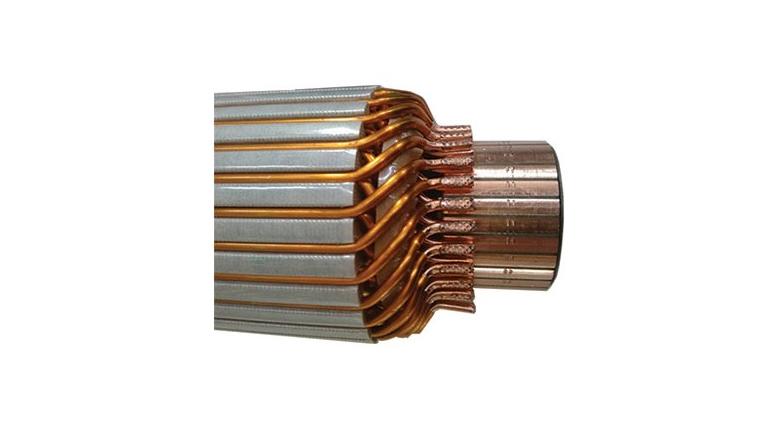

Wire by Electricity Terminal

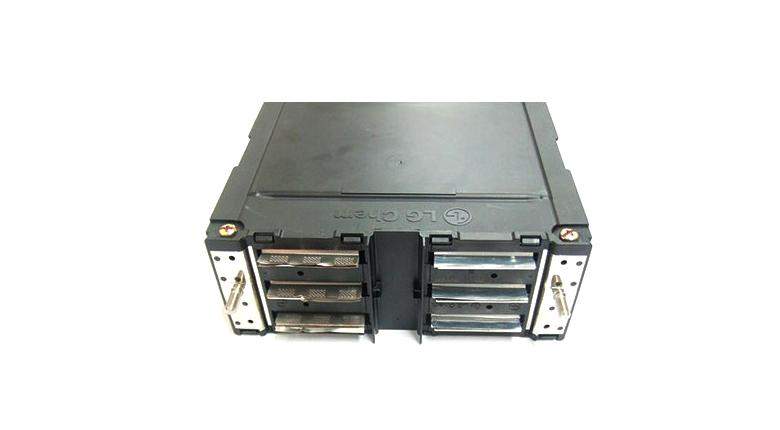

ESS Pack Battery Bus-Bar

Heavy Metal etc…
