“KM-Super Series” Ultrasonic Metal Welder has the most rapid progress of industrialization industry metal welding applications, especially secondary batteries, lithium-ion battery in a production sector is considered as the best option. Automotive industry, as well as areas for welding the metal material surface and the surface of the defined area, in the electronic component manufacturing, and excellent performance.

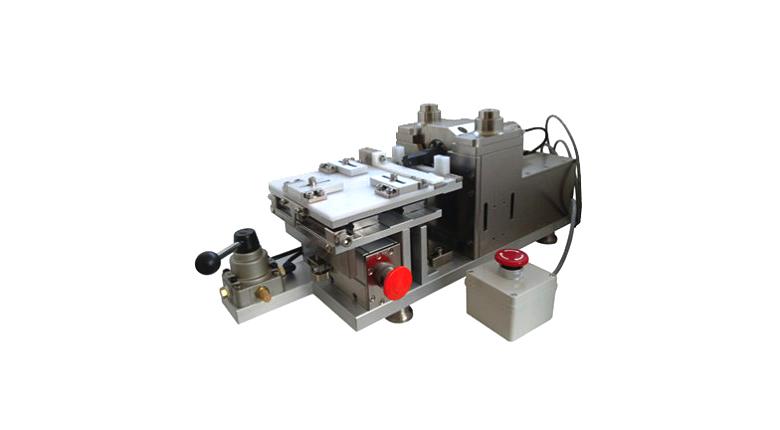

KM-40 S Actustor & Jig

Frequency : 40Khz

Cylinder : 25mm

Air Pressure : Dry & Clean Min 2.0 ~ Max 6.0 Bar

Size : 150mm X 400mm X 250mm (Only Actuator)

Weight : 18Kg (Without Zig Part)

AC 230V ±15% VAC / 50~60HZ

Application Area

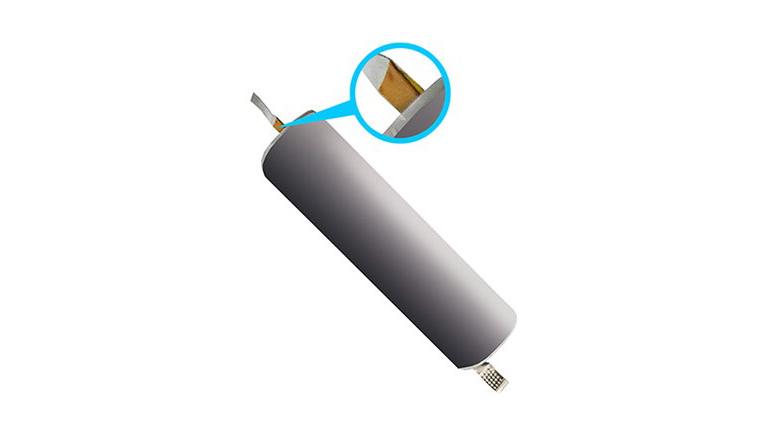

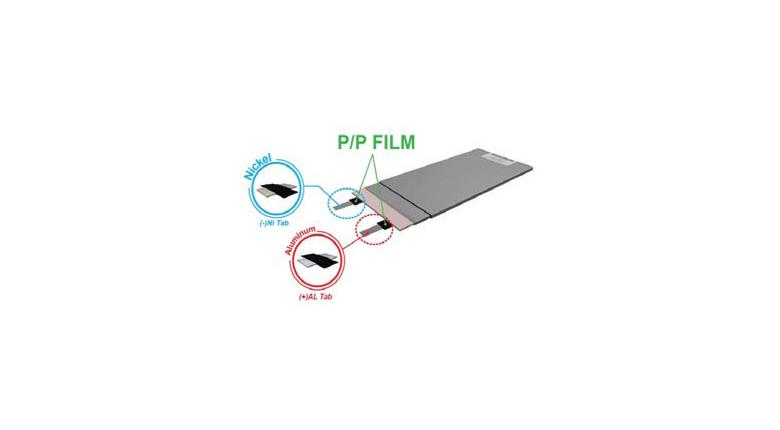

Lithium-polymer Battery

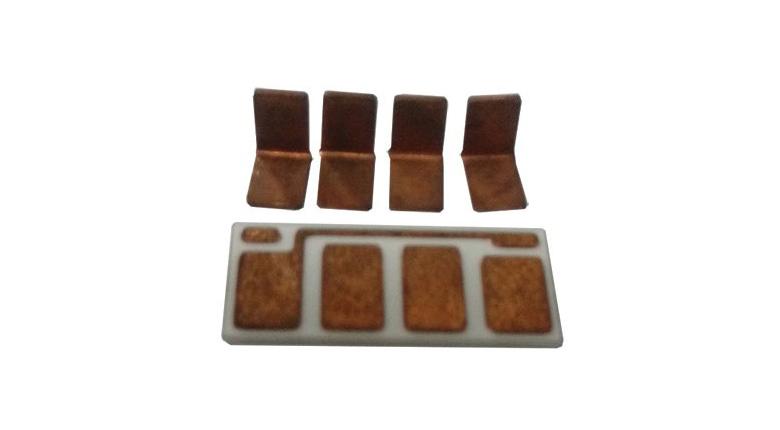

Cu, Al Foil by Ni, Al Tap

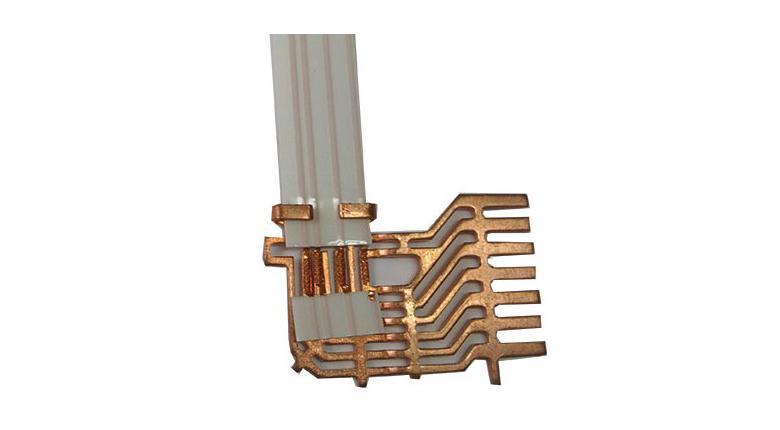

Wire by Electricity Terminal

Light Metal etc…
