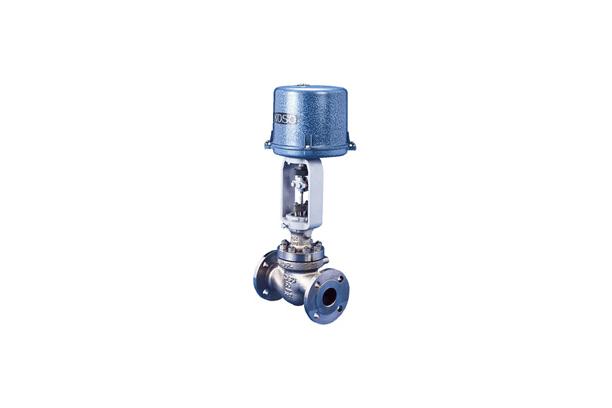

▶ 3500R/3500L/3600R/3600L/3620R/3620L : Solid State Electronic Actuators
Each product of this series drives and controls a control valve, with a motor driven by a full-electronic controller upon receipt of a signal (4 to 20 m ADC) from the controller.
A product of 3500 series, which is of high-end type, executes critical control by means of a brushless DC servo, a product of 3600 series or 3620 series providing superior cost performance executes control by an AC reversible motor. Furthermore, a product of 3620 series, which is of motor built-in type, provides excellent heat radiation effect. In addition, explosion-proofing approved models are also replete. See here for models and details of specification.
Specification
3500R Rotary stem motion type/3500L Linear stem motion type
Principal uses | Control | |
Power | Drive motor | Brushless DC motor |
Power supply | Single phase 100V AC 50/60Hz | |
Power supply Optional | Single phase 110/200/220V AC 50/60Hz | |
Motor rating | Continuous | |
Control mechanism | Input signal | 4 to 20mA DC |
Input signal Optional | 1 to 5V DC/4 to 12mA DC/12 to 20mA DC | |
Opening signal transmission Optional | 4 to 20mA DC with zero and span adjustment | |
Resolution | 0.3% (3/1000) | |
Resolution Optional | 0.1% (1/1000) | |
Zero adjust range | +/-12.5% | |
Span adjust range | 5 to 100% | |
Operation | Either forward operation or reverse operation can be selected | |
Ancillary mechanism | Manual operation mechanism | Dismountable handle type |
Sequence output signal | Output shaft clockwise turned position (3500R) Output shaft lowered position (3500L) | |
Sequence output signal Optional | Output shaft counterclockwise turned position (3500R) Output shaft elevated position (3500L) | |
Overload protection | With built-in overload protector | |
Space heater Optional | * Please contact us for details, as this matter depends on the power supply voltage. | |
Conditions for installation | Ambient temperature | -10 to 50° |
Ambient temperature With space heater | -20 to 40° | |
Mounting position | Should not be mounted in an inverted position from the maintenance face. | |
Body portion | External sheath type | Protection class IP55 or equivalent |
Wiring port | G1/2 (2 places) | |
Wiring port Optional | Various adaptors can be mounted | |
Installation seat | Conforms to ISO | |
3600R Rotary stem motion type/3600L Linear stem motion type
Principal uses | Control | |
Power | Drive motor | AC reversible motor |
Power supply | Siingle phase 100V AC 50/60Hz | |
Power supply Optional | Single phase 110/200/220V AC 50/60Hz | |
Motor rating | 30 minutes | |
Control mechanism | Input signal | 4 to 20mA DC or 1 to 5V DC |
Opening signal transmission | 4 to 20mA DC | |
Resolution | 0.8 to 1.0% (1/125 to 1/100) | |
Resolution Optional | 0.4% (1/250) | |
Zero adjust range | +/-25% | |
Span adjust range | 20 to 100% | |
Operation | Either forward operation or reverse operation can be selected | |
Ancillary mechanism | Control position detection Optional | Auxiliary limit switch (voltfree), maximum points of detection 2 places (3600R) |
Manual operation mechanism | Dismountable handle type | |
Overload protection | With built-in thermal protector | |
Overload protection Optional | Overload unit, Torque switch on closed side (CW direction only, 3600R) | |
Space heater Optional | *Please contact us for details, as this matter depends on the power supply voltage. | |
Conditions for installation | Ambient temperature | -10 to 50° |
Ambient temperature With space heater | -20 to 40° | |
Mounting position | Should not be mounted in an inverted position from the maintenance face. | |
Body portion | External sheath type | Protection class IP55 or equivalent |
Wiring port | G3/4 (3600R) G1/2 (3600L) 2 places | |
Wiring port Optional | Various adaptors can be mounted, Terminal box (3600L) | |
Installation seat | Conforms to ISO | |
3620R Rotary stem motion type/3620L Linear stem motion type
Principal uses | Control | |
Power | Drive motor | AC reversible motor |
Power supply | Single phase AC100/110V 50/60Hz (+/-5%) | |
Power supply Optional | Single phase AC200/220V 50/60Hz (+/-5%) | |
Motor rating | 30 minutes | |
Control mechanism | Input signal | 4 to 20mA DC or 1 to 5V DC |
Opening signal transmission | 4 to 20mA DC | |
Resolution | 0.5 to 1.0% (1/200 to 1/100) | |
Resolution Optional | 0.3% (1/300) | |
Zero adjust range | +/-25% | |
Span adjust range | 20 to 100% | |
Operation | Either forward operation or reverse operation can be selected | |
Save function | ON/OFF selection by select switch | |
Ancillary mechanism | Control position detection Optional | Auxiliary limit switch (voltfree), maximum points of detection 2 places |
Manual operation mechanism | With handle insertion hole | |
Overload protection | With built-in thermal protector, Torque switch (3620R is an option) | |
Space heater Optional | * Please contact us for details, as this matter depends on the power supply voltage. | |
Conditions for installation | Ambient temperature | -10 to 50° |
Ambient temperature With space heater | -20 to 40° | |
Mounting position | Should not be mounted in an inverted position from the maintenance face. | |
Body portion | External sheath type | Protection class IP55 or equivalent |
Wiring port | G1/2 (2 places) | |
Wiring port Optional | Various adaptors can be mounted, Terminal box | |
Installation seat | Conforms to ISO | |
