Pneumatic Cylinder Actuators

Model Name

6300RB

Series

Actuators

Data

Manufacturer information

Automatic Control Valve Manufacturer, Control Valve, Actuaotr, Filed Bus, Pump, Sensor

Inquiry

Problem with product info?

Update request

Manufacturer

KOREA KOSO

Product Type

Machine

Brand

SKU

129677

Product Name

Pneumatic Cylinder Actuators

Model Name

6300RB

Size

Weight

Product Details

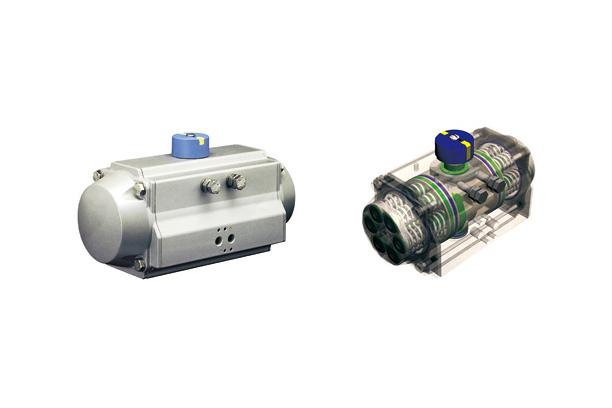

▶ 6300RB: Pneumatic Cylinder Actuators

- Small Torque Cylinder

- 2 Piston Rack & Pinion Pneumatic Actuator

- Output Shaft Rotating angle/90° or 60°

Specification

Type code	Double Acting type
Type code	63B0RB	63B1RB	63B2RB	63BARB	63B3RB	63BBRB
Size	AT050	AT100	AT200	AT250	AT300	AT350
Output N·m at 500KPa	16.6	29.3	58.2	91.5	133	215
Air supply	Double Acting: 300 to 500 KPa, Spring Return: 300, 400, 500 KPa
Action	Direct Action or Reverse Action
Environment temp.	Standard type: -20 to +60°, Low temp.service: -50 to +60°, High Temp.service: 0 to +100°
Options	Manual handwheel, Limit Switch, Positioner, Air-set, Speed controller, Lock Valve, Lock up Valve, Solenoid Valve etc.

Type code	Double Acting type
Type code	63B4RB	63BCRB	63B5RB	63BDRB	63B6RB	63BERB	63B7RB
Size	AT400	AT450	AT500	AT550	AT600	AT650	AT700
Output N·m at 500KPa	277	435	567	766	1064	1787	2594
Air supply	Double Acting : 300 to 500 KPa, Spring Return : 300, 400, 500 KPa
Action	Direct Action or Reverse Action
Environment temp.	Standard type: -20 to +60°, Low temp.service: -50 to +60°, High Temp.service: 0 to +100°
Options	Manual handwheel, Limit Switch, Positioner, Air-set, Speed controller, Lock Valve, Lock up Valve, Solenoid Valve etc.

Type code	Spring Return type
Type code	63B0RB	63B1RB	63B2RB	63BARB	63B3RB	63BBRB
Size	AT050	AT100	AT200	AT250	AT300	AT350
Output N·m at 500KPa	6.7	11.1	22.1	36.7	50.7	82
Air supply	Double Acting : 300 to 500 KPa, Spring Return : 300, 400, 500 KPa
Action	Direct Action or Reverse Action
Environment temp.	Standard type: -20 to +60°, Low temp.service: -50 to +60°, High Temp.service: 0 to +100°
Options	Manual handwheel, Limit Switch, Positioner, Air-set, Speed controller, Lock Valve, Lock up Valve, Solenoid Valve etc.

Type code	Spring Return type
Type code	63B4RB	63BCRB	63B5RB	63BDRB	63B6RB	63BERB	63B7RB
Size	AT400	AT450	AT500	AT550	AT600	AT650	AT700
Output N·m at 500KPa	105	165	224	292	425	721	992
Air supply	Double Acting : 300 to 500 KPa, Spring Return : 300, 400, 500 KPa
Action	Direct Action or Reverse Action
Environment temp.	Standard type: -20 to +60°, Low temp.service: -50 to +60°, High Temp.service: 0 to +100°
Options	Manual handwheel, Limit Switch, Positioner, Air-set, Speed controller, Lock Valve, Lock up Valve, Solenoid Valve etc.
