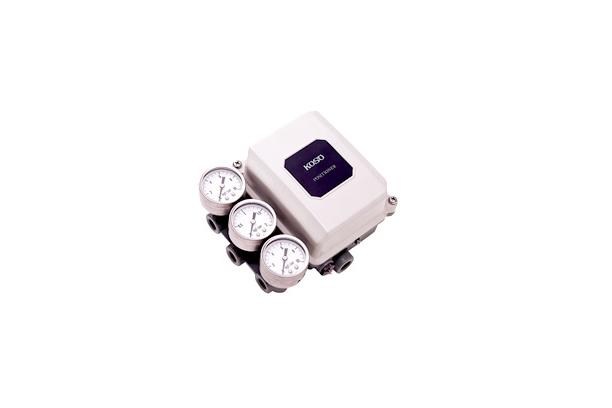

▶ PP800: Pneumatic-Pneumatic Positioner
Same series as EP800 but this works having pneumatic signal (20 to 100Kpa). Also double acting and single acting types are available.
Specification
Type | PPA800 for single acting | PPC800 for Double acting | |
Application | Linear-motion Valve/Rotary-motion Valve/Long-stroke Valve | ||
Input Signal | 20-100,20-60,60-100kPa | ||
Air supply | 140-700kPa | ||
| Single acting type | Double acting type | |
Linearity | +/-1.0% | +/-1.5% | |
Hysteresis | 0.5% | 0.8% | |
Response Level | 0.1% | 0.2% | |
Repeatability | 0.2% | 0.3% | |
Air consumption | 5Nl/min. at sup.140kPa | 15Nl/min. at sup.400kPa | |
Max. capacity | 175Nl/min. at sup.140kPa | 400Nl/min. at sup.400kPa | |
Enclosure | Weather proof | ||
Environment temp. | Standard:-20 - 80/ Low temp.:-50 - 60/ High temp.:0 to 100 deg.C | ||
