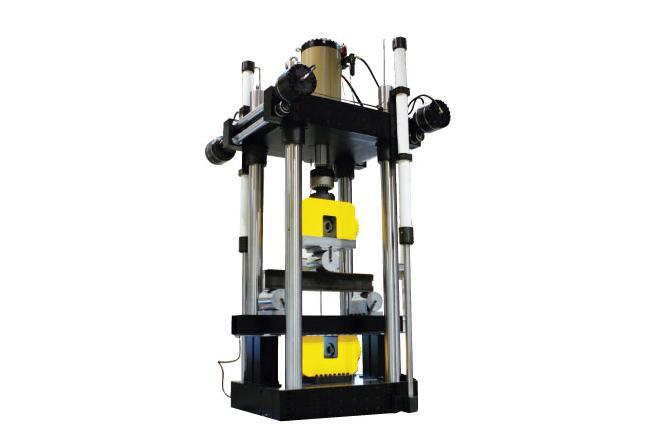

For full scale or near full scale applications in Civil Engineering testing such as long supporting beams or highway bridge components, while the basic mechanics of the load frame and dynamic performance are similar to the conventional large scale machine.
The primary difference between these two systems are the extended baseplate.
· Meet with ASTM
· Platens for longitudinal loading of specimens
· Safety chains
· Load distribution strips (not shown)
· Software for test control, data acquisition and reporting
· To allow large scale, high force testing, KNR can provide a high force & stiffness testing machine depending upon your requirements.
· Systems shown range from 1 MN to 5MN in capacity and we also design a custom solution or provide a standard system to meet your needs.
· Equal Area Tension/Compression Rating of Self Reacting Design Actuator Mounted on base platen and Frame Installed on floor.
· Test Space (0.6 meters wide x 1.0meters vertical) Compression platen (300mm diameter)
The KNR’s Large scale triaxial testing system is hydraulically actuated with a large diameter triaxial cell suitable for testing samples with large particle sizes such as railway ballast.
The system is capable of both monotonic (static) and dynamic triaxial tests as well as other triaxial tests usually expected from an advanced technologies.
The automatic triaxial system will enable the full automation and control of all test parameters required to perform effective stress and stress path tests from start to finish.
The basic system comprises a real time control module housed in a chassis, a data logger and a computer running test and management software, all connected to a high speed communications and control network.
