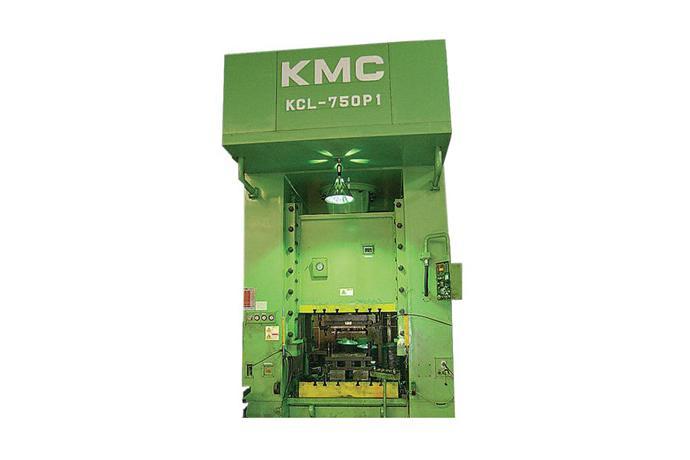

KCL-P1 Series / H-Type 1Point Crankless Press
Capacity(Ton) 200 ~ 1000
It is designed with H-shaped powerful frame structure and crankless drive system and built in resistant structure to shocks at driving parts that of the disadvantages of crank type.
- HIGHLY EFFICIENT WET TYPE CLUTCH BRAKE
- HYDRAULIC OVERLOAD PROTECTOR DEVICE
- SLIDE ADJUSTMENT DEVICE
- 2POINT 6 PHASES STRUCTURE
- 4 PHASES STRUCTURE
- SUITABILE FOR REALTIVELY THICK PLATES OF BLANKING, PIERCING,ETC
- STRUCTURE OF RIGID FRAME CAN GUARANTEE DYNAMIC ACCURACY
- PHOTOELECTRIC SAFETY DEVICE
- AIR EJECTOR
- FREE SET COUNTER
Standard Specifications
| Speciflcarion | Unit | KCL-200P1 | KCL-300P1 | KCL-400P1 | KCL-500P1 | KCL-750P1 | KCL-1000P1 |
| Capacity | ton | 200 | 300 | 400 | 500 | 750 | 1000 |
| Limit of Capacity | mm | 10 | 10 | 10 | 13 | 13 | 13 |
| Stroke | mm | 250 | 250 | 300 | 300 | 350 | 350 |
| Number of Stroke | spm | 40 | 35 | 30 | 25 | 25 | 25 |
| Die Height | mm | 500 | 550 | 600 | 650 | 700 | 800 |
| Adjustment of slide | mm | 120 | 120 | 150 | 150 | 200 | 200 |
| Area of slide | mm | 900x800 | 1000x900 | 1000x900 | 1100x1000 | 1400x1200 | 1400x1200 |
| Area of Bolster | mm | 1000x900 | 1100x1000 | 1100x1000 | 1200x1100 | 1500x1300 | 1500x1300 |
| Working height | mm | 750 | 750 | 750 | 750 | 750 | 750 |
| Main Motor | kwxp | 19x4 | 22x4 | 37x4 | 45x4 | 75x4 | 90x4 |
| Die Cushion | |||||||
| Capacity | ton | 15 | 20 | 25 | 35 | 50 | 70 |
| Stroke | mm | 130 | 130 | 150 | 150 | 200 | 200 |
| Pad Area | mm | 700x700 | 700x700 | 700x700 | 750x750 | 1000x1000 | 1000x1000 |
| Air Pressure | Kg/cm² | 5 | 5 | 5 | 5 | 5 | 5 |
Product Information
Features
- Equipped With Wet Type clutch and brake system
- Good Durability for long time continuous working
- STRUCTURE OF RIGID FRAME CAN GUARANTEE DYNAMIC ACCURACY
- Operating driving part and transmission part very smoothly without strain even in hard circumstance
- Used to thick plate working such as blanking, piercing etc.
Selection
1. V/S MOTOR
2. DIE CUSHION
3. ANTI-VIBRATION UNIT
4. QUICK DIE CHANGE
5. ELECTRONIC GONIOMETER
6. KNOCK OUT DEVICE
7. AUTO TRANSFER DEVICE
8. PLC SYSTEM( Programable Logic Controller )
