Manufacturer
KMC
Product Type
Machine
Brand
-
SKU
16311
Product Name
Hydraulic Press
Model Name
KDS-500TS, KDS-1000TS, KDS-2000TS, KDS-3000TS, KDS-5000TS, KDS-500S, KDS-1000S, KDS-2000S, KDS-3000S, KDS-5000S
Size
-
Weight
-
Product Details
This press is a equipment to use Tryout & Spotting of automobile's mold.
It is possible to control Storke minutely and repetition position of Slide by adopting Hydraulic Micro Inching using syncho system.
It improves the convenience of inching operation by adopting Micro Inching using Jog dial switch.
| 능력 | KDS-500TS | KDS-1000TS | KDS-2000TS | KDS-3000TS | KDS-5000TS | |
| 능력 | KDS-500S | KDS-1000S | KDS-2000S | KDS-3000S | KDS-5000S | |
Pressurizing capacity | TON | 10 | 30 | 50 | 80 | 100 |
Pull-up capacity | TON | 6 | 17 | 30 | 40 | 60 |
Table area | mmxmm | 3000X2000 | 3000X2000 | 3000X2000 | 3000X2000 | 3000X2000 |
Daylight opening | mm | 700 | 1000 | 1300 | 1500 | 1700 |
Stroke | mm | 500 | 800 | 1000 | 1100 | 1200 |
Clapper capacity | kg | 500 | 1000 | 2000 | 3000 | 5000 |
Clapper angle(deg) | 度 | 90 | 90 | 100 . 180 | 100 . 180 | 100 . 180 |
Try out capacity(oz) | oz | 30 | 60 | 120 | 160 | 200 |
Try out heater | kw | 0.6 | 1 | 1.2 | 1.6 | 2 |
Try out air pressure | kg/cm2 | 5 | 5 | 5 | 5 | 5 |
Lowering speed | mm/sec | 45 | 45 | 45 | 45 | 45 |
Elevating speed | mm/sec | 70 | 75 | 70 | 70 | 75 |
Motor | kw | 3.7 | 5.5 | 7.5 | 11 | 18.5 |
Tank capacity | l | 50 | 150 | 170 | 400 | 600 |
More products
Hydraulic PressKDP-100, KDP-150A, KDP-150B, KDP-200A, KDP-200B, KDP-250B, KDP-300B, KDP-400B, KDP-500B, KDP-600, KDP-800, KDP-1000
Knuckle Joint PressKKF-250, KKF-400, KKF-650, KKF-800, KKF-1000
Link PressKSL-110B, KSL-150B, KSL-200B, KSL-250B, KSL-300B
Link PressKDHL-250, KDHL-300, KDHL-400, KDHL-500, KDHL-600

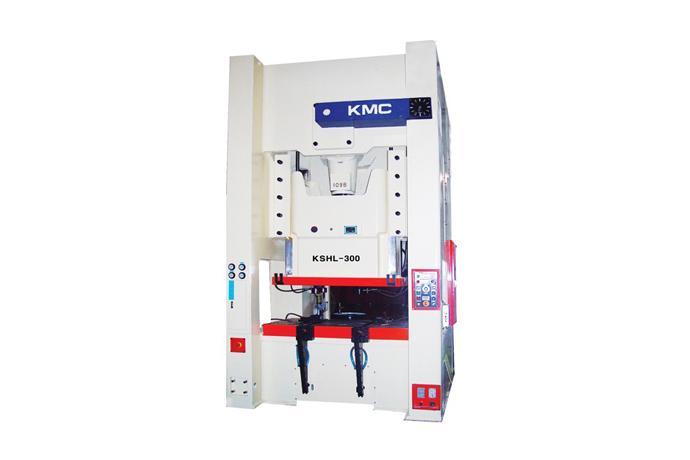

Link PressKSHL-110, KSHL-150, KSHL-200, KSHL-250, KSHL-300, KSHL-400, KSHL-500

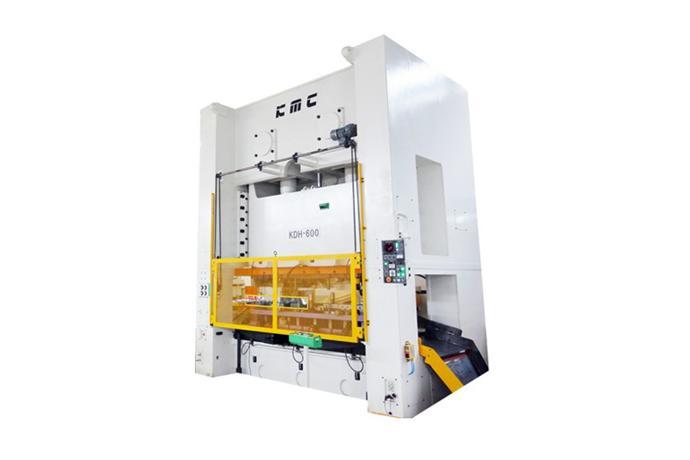

Semi-H Type PressKDH-250, KDH-300, KDH-400, KDH-500, KDH-600

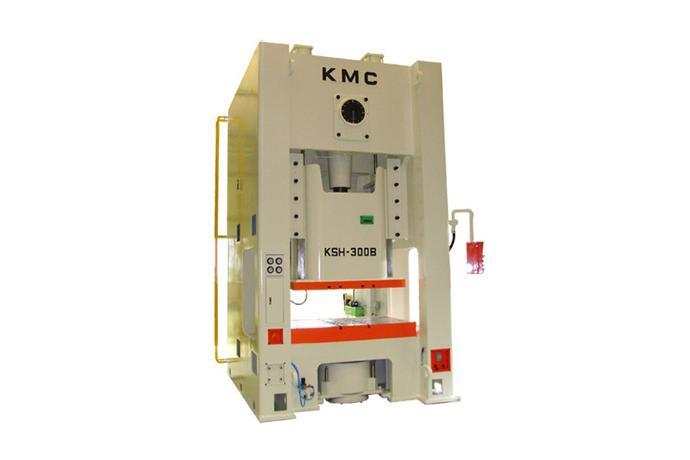

Semi-H Type PressKSH-110, KSH-150, KSH-200, KSH-250, KSH-300, KSH-400, KSH-500

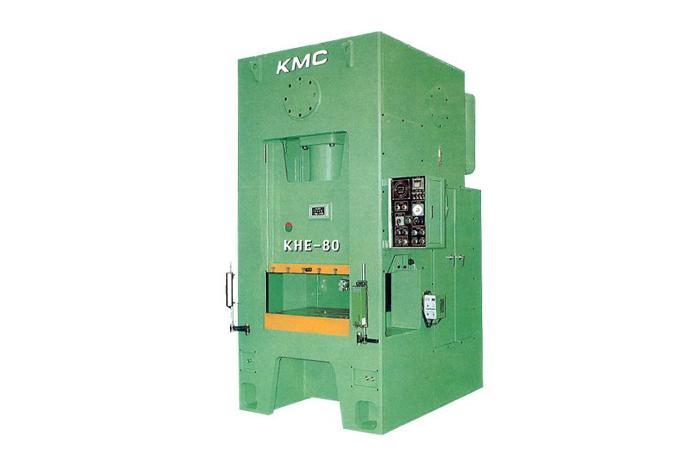

Semi-H Type PressKHE-80, KHE-110, KHE-150, KHE-200

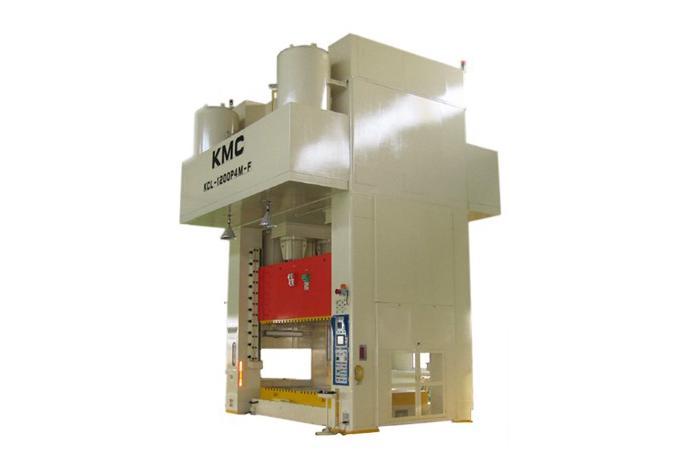

H Type Crankless PressKCL-400P4, KCL-500P4, KCL-600P4, KCL-800P4, KCL-1000P4, KCL-1200P4, KCL-1500P4, KCL-2000P4, KCL-2400P4

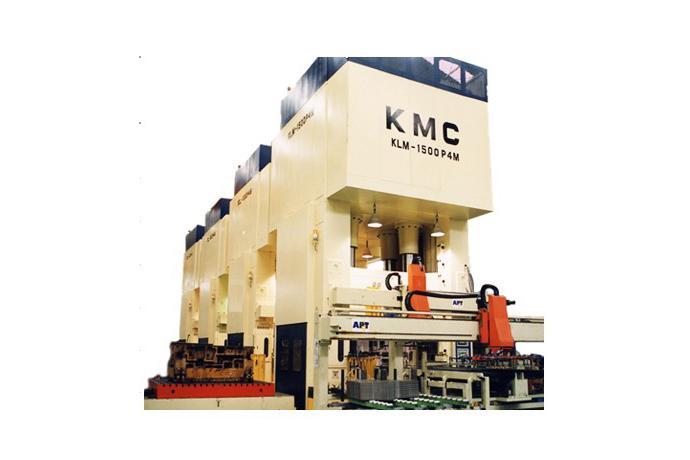

Link PressKLM-400P4, KLM-600P4, KLM-800P4, KLM-1000P4, KLM-1200P4, KLM-1500P4, KLM-2000P4, KLM-2400P4
Link PressKLM-400P2, KLM-600P2, KLM-800P2, KLM-1000P2, KLM-1200P2, KLM-1500P2

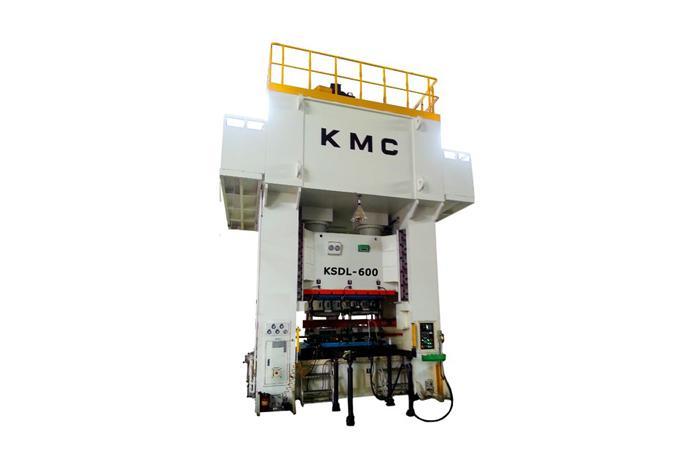

Link PressKSDL-200, KSDL-300, KSDL-400, KSDL-500, KSDL-600, KSDL-800
