Product Name PM Micro Switch
Model None
Series Micro Switch
Catalog
Product Description

Features

1. Can be mounted on various automation equipment and switchboard panel
2. 1NO / 1NC structure design for contact wiring
3. Designed for smooth, clear operation and reliable snap action structure
4. Designed with shock-resistant PC material and self-protection structur
5.

Specification



Name composition




Circuit diagrams



External form / Drawing

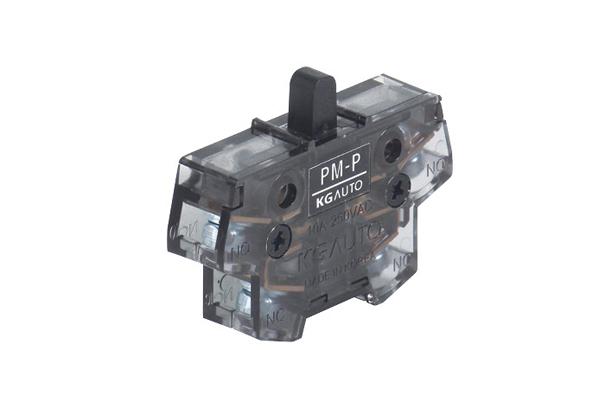

PM-P

ExternalDrawingOperating characteristics





FP : 16.1 ±0.2
OP : 12.9 ±0.5
RP : 14.6 ±0.5
PT : 3.2 ±1.0
TT : 8.1 ±0.5
MD : 1.7 ±0.5
OF Max. : 270gf
RF Min. : 60gf



PM-20R

External
Drawing
Operating characteristics






FP : 32.6 ±1.0
OP : 25.9 ±1.0
RP : 29.2 ±1.0
PT : 6.7 ±1.0
TT : 14.6 ±1.0
MD : 3.3 ±1.0
OF Max. : 130gf
RF Min. : 30gf

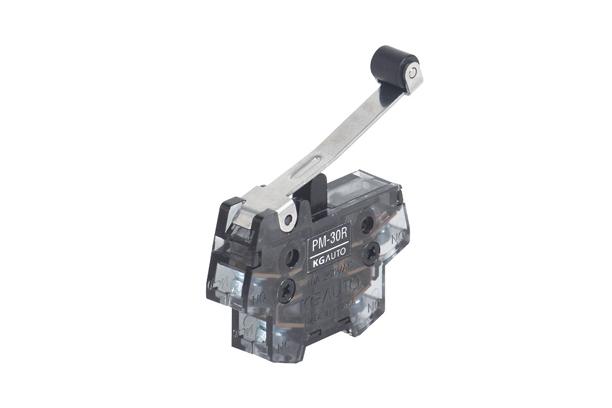

PM-30R

External
Drawing
Operating characteristics







FP : 36.5 ±1.0
OP : 29.1 ±1.0
RP : 33.6 ±1.0
PT : 7.4 ±1.0
TT : 18.5 ±0.5
MD : 4.5 ±0.5
OF Max. : 100gf
RF Min. : 20gf

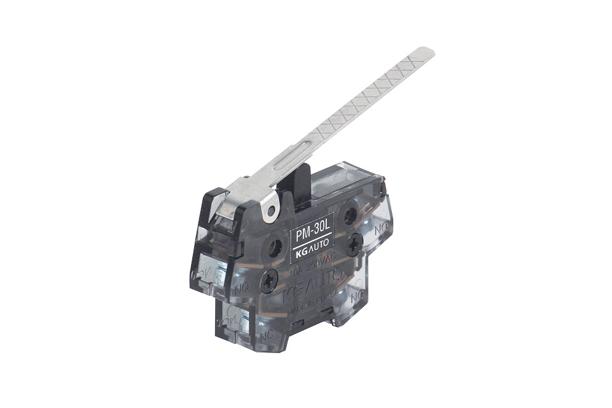

PM-30L

External
Drawing
Operating characteristics







FP : 30.5 ±1.0
OP : 17.1 ±1.0
RP : 25.4 ±1.0
PT : 13.4 ±1.0
TT : 27.5 ±1.0
MD : 8.1 ±1.0
OF Max. : 80gf
RF Min. : 20gf

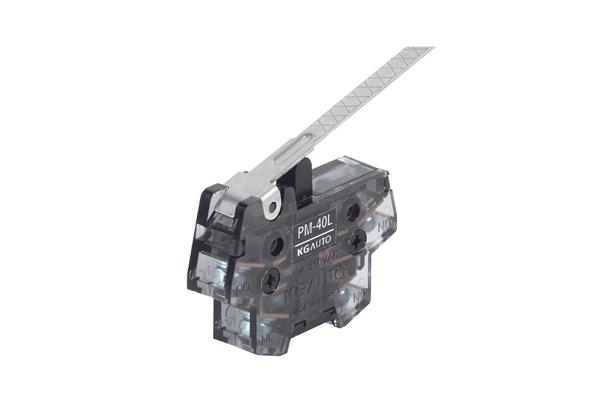

PM-40L

External
Drawing
Operating characteristics





FP : 41.0 ±1.0
OP : 20.2 ±1.0
RP : 33.2 ±1.0
PT : 20.8 ±1.0
TT : 28 ±1.0
MD : 13 ±0.5
OF Max. : 60gf
RF Min. : 20gf
