Manufacturer
KG AUTO
Product Type
Machine
Brand
-
SKU
122527
Product Name
PM Micro Switch
Model Name
-
Size
-
Weight
-
Product Details
Features
1. Can be mounted on various automation equipment and switchboard panel
2. 1NO / 1NC structure design for contact wiring
3. Designed for smooth, clear operation and reliable snap action structure
4. Designed with shock-resistant PC material and self-protection structur
5.
Specification
Name composition
Circuit diagrams
External form / Drawing
PM-P
| External | Drawing | Operating characteristics |
|
|
FP : 16.1 ±0.2 OP : 12.9 ±0.5 RP : 14.6 ±0.5 PT : 3.2 ±1.0 TT : 8.1 ±0.5 MD : 1.7 ±0.5 OF Max. : 270gf RF Min. : 60gf |
PM-20R
| External | Drawing | Operating characteristics |
|
|
FP : 32.6 ±1.0 OP : 25.9 ±1.0 RP : 29.2 ±1.0 PT : 6.7 ±1.0 TT : 14.6 ±1.0 MD : 3.3 ±1.0 OF Max. : 130gf RF Min. : 30gf |

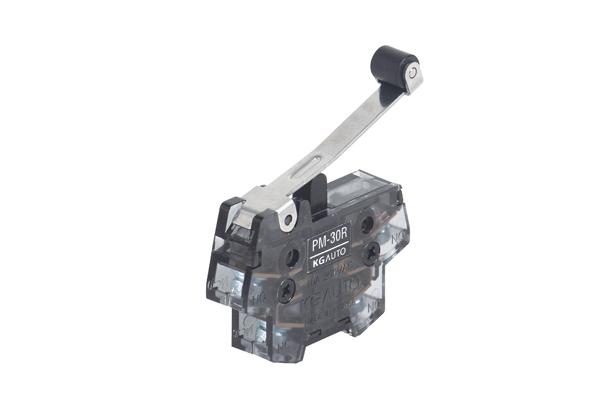

PM-30R
| External | Drawing | Operating characteristics |
| |
FP : 36.5 ±1.0 OP : 29.1 ±1.0 RP : 33.6 ±1.0 PT : 7.4 ±1.0 TT : 18.5 ±0.5 MD : 4.5 ±0.5 OF Max. : 100gf RF Min. : 20gf |

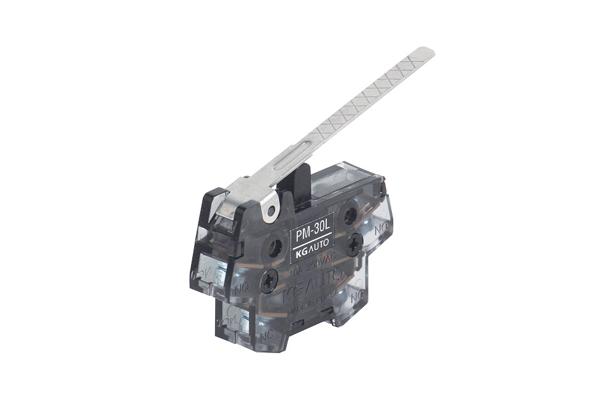

PM-30L
| External | Drawing | Operating characteristics |
|
|  FP : 30.5 ±1.0 OP : 17.1 ±1.0 RP : 25.4 ±1.0 PT : 13.4 ±1.0 TT : 27.5 ±1.0 MD : 8.1 ±1.0 OF Max. : 80gf RF Min. : 20gf |

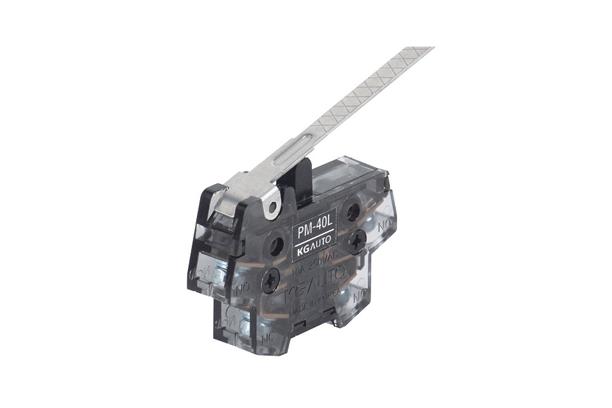

PM-40L
| External | Drawing | Operating characteristics |
|
|  FP : 41.0 ±1.0 OP : 20.2 ±1.0 RP : 33.2 ±1.0 PT : 20.8 ±1.0 TT : 28 ±1.0 MD : 13 ±0.5 OF Max. : 60gf RF Min. : 20gf |
