Description
Features
1. The 10A type micro-switch is included inside and guarantees the life when the interception speed in long
2. The selection is possible to the normal type and water-proof type.
3.
Proper form / Quality of the material
| Division / Name | Capacity of contact | Quality of the material | Wire, length |
KG-FS10 Normal type | 10A 205V a.c | Aluminum die-casting | Wire 0.75mm² x 2C Length 1.5M |
KG-FS10P Water-proof type | 10A 250V a.c | Aluminum die-casting | Wire 0.75mm² x 2C Length 1.5M |
KG-FS30 Normal type | 10A 250V a.c | Plastic body | Wire 0.75mm² x 2C Length 1.5M |
| ▶ Water-proof, KG-FS10P type | ▶ Circuit diagrams |
|
|
External form / Drawing

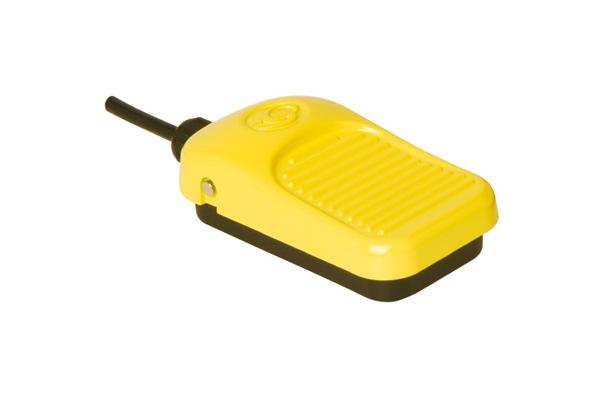

KG-FS10(Normal type)
KG-FS10P(Water-proof type)

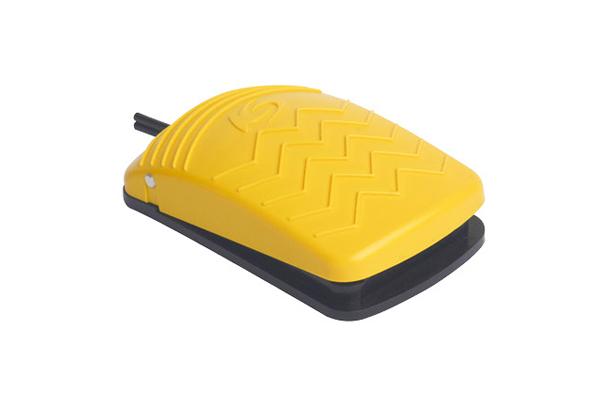

KG-FS30(Normal type)
