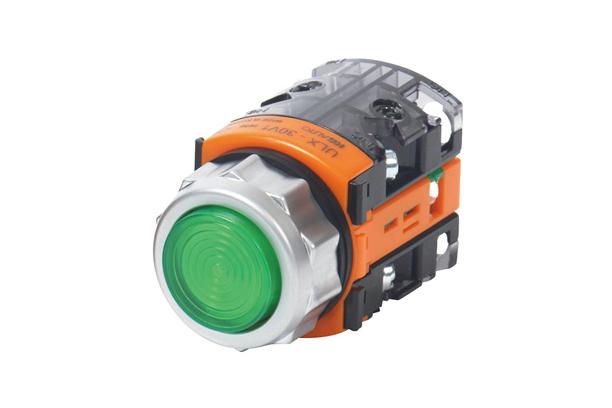

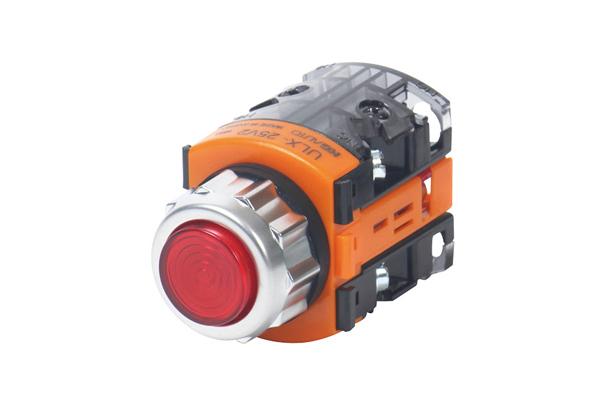

Product Name Lamp push button switch
Model None
Series ULTRA Series
Catalog
Product Description

Features

1. Control part and contact part is designed separate type.
2. Contact parts are easily detachable unit is designed as a detachable.
3. Contact block was planned basic 1a1b
4. The output designed basic for LED
5. There is protective cover for contact terminals from electric shock
6. There are two attachment holes ∅25, 30 model
7.


LED Lamp

Rated voltageRated current
12V d.c8mA / 100mw
24V d.c
18mA / 430mw
110V a.c3mA / 330mw
220V a.c7mA / 1.5w


Circuit diagrams




Performance




Name composition




Part

DivisionFormCodeExplain
Contactor unit


UL-10
Base contact is designed as 1a.
Easily assembly and removable with body.
Contactor unit


UL-20
Base contact is designed as 1b.
Easily assembly and removable with body.
Contactor unit


UL-12
Base contact is designed as 1a1b.
Easily assembly and removable and removable with body.
∅25 Guide


UL-25GOperation part ∅25 guide
∅30 Guide


UL-30GOperation part ∅30 guide
Turn prevention ring


UL-25TOperating part ∅25 turn prevention ring
Turn prevention ring


UL-30TOperation part ∅30 turn prevention ring



비상명판 KG-EN22/25


비상 명판 KG-EN30





Attention

- Panel cutting is above by a necessity to select
- Panel thickness 1~6mm
- Lamp terminal and terminal wiring not to be ex change it will have attention
- Attaching nut torque is below 20kgf· cm
- Attaching blot torque is blow 5kgf· cm
- Terminal blot used ring and M3.5
