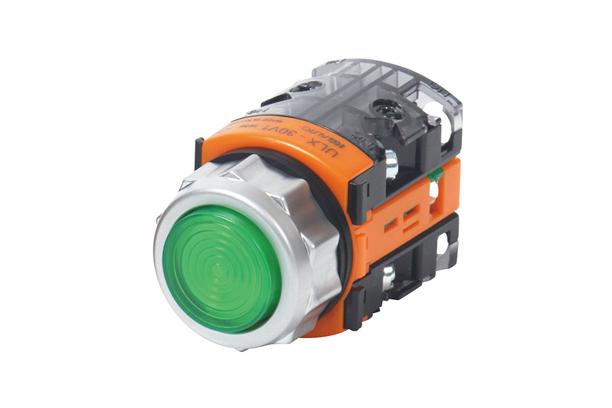

Description
Features
1. Control part and contact part is designed separate type.
2. Contact parts are easily detachable unit is designed as a detachable.
3. Contact block was planned basic 1a1b
4. The output designed basic for LED
5. There is protective cover for contact terminals from electric shock
6. There are two attachment holes ∅25, 30 model
7.
LED Lamp
Rated voltage | Rated current |
12V d.c | 8mA / 100mw |
24V d.c | 18mA / 430mw |
110V a.c | 3mA / 330mw |
220V a.c | 7mA / 1.5w |
Circuit diagrams
Performance
Name composition
Part
Division | Form | Code | Explain |
Contactor unit | UL-10 | Base contact is designed as 1a. Easily assembly and removable with body. | |
Contactor unit | UL-20 | Base contact is designed as 1b. Easily assembly and removable with body. | |
Contactor unit | UL-12 | Base contact is designed as 1a1b. Easily assembly and removable and removable with body. | |
∅25 Guide | UL-25G | Operation part ∅25 guide | |
∅30 Guide | UL-30G | Operation part ∅30 guide | |
Turn prevention ring | UL-25T | Operating part ∅25 turn prevention ring | |
Turn prevention ring | UL-30T | Operation part ∅30 turn prevention ring |
비상명판 KG-EN22/25 | 비상 명판 KG-EN30 |
Attention
- Panel cutting is above by a necessity to select
- Panel thickness 1~6mm
- Lamp terminal and terminal wiring not to be ex change it will have attention
- Attaching nut torque is below 20kgf· cm
- Attaching blot torque is blow 5kgf· cm
- Terminal blot used ring and M3.5
