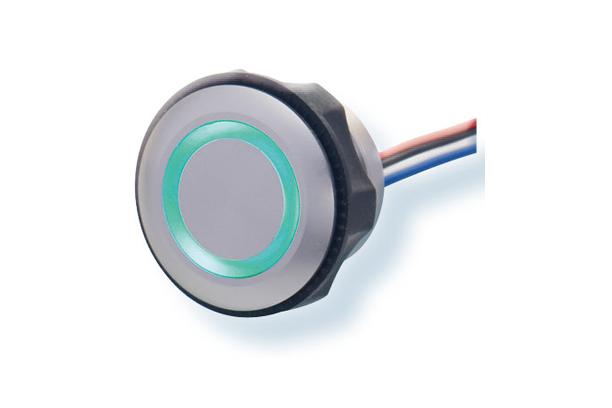

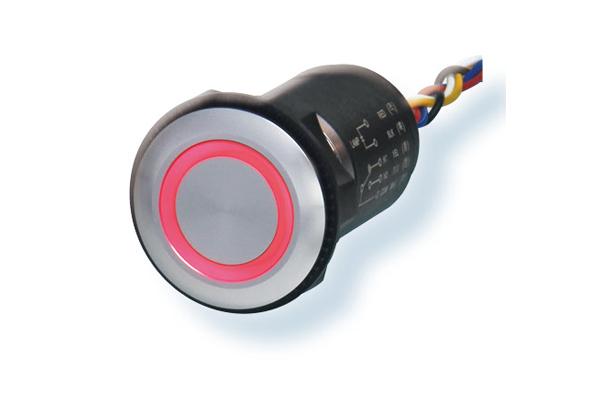

Product Name WATERPROOF CONTROL SWITCH
Model None
Series KG Series
Catalog
Product Description

Features

1. Fully waterproofed IP-68 structure for the front and the rear side
2. Using built-in relay contact, fulfill capacity of AC250V, 0.3A
3. Illuminated push button switch AC110/220V & DC12/24V


Performance



Name composition


Circuit diagram




Appearance & Drawing

∅25 Flush type
DC12/24V WPXD



∅30 Flush type
DC12/24V WPXD



∅25 Flush type




∅30 Flush type






Basic information

1. This switch has a built-in relay on PCB, so apply power supply so that the switch could be operated.
2. This switch is available to control a load below 70W directly, but recommend using this switch to operate a relay or electronic contractor.
3. For Always ON model, whenever press the button, the LED lamp is turned OFF and operate a load
4. For Always  OFF model, whenever press the button, the LED lamp is turned ON and operate a load.


Cautions

1. Connect wires after verifying the operational voltage and allowed current
2. This waterproof switch can be used at outdoors, but do not use this switch at a place exposed to combustible gas or explosive gas.
3. When forcefully fastening, it could cause damage to product
