KG AUTO

KG AUTO

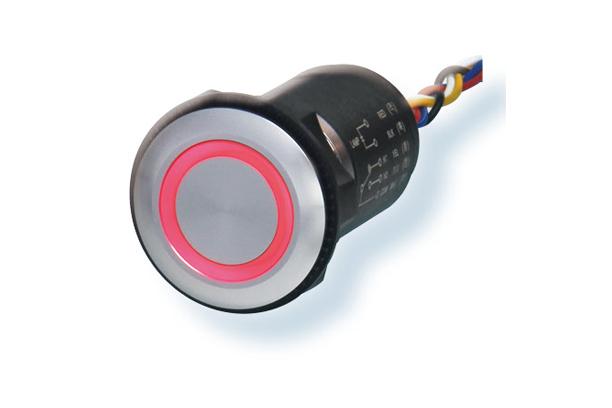

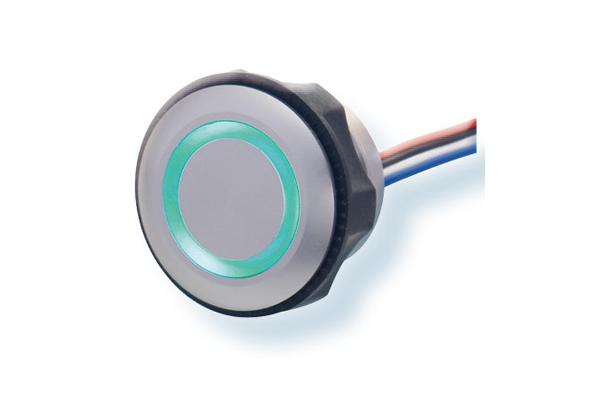

WATERPROOF CONTROL SWITCH

Model

Series

KG Series


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.


Description

Features

1. Fully waterproofed IP-68 structure for the front and the rear side
2. Using built-in relay contact, fulfill capacity of AC250V, 0.3A
3. Illuminated push button switch AC110/220V & DC12/24V


Performance



Name composition


Circuit diagram




Appearance & Drawing

∅25 Flush type
DC12/24V WPXD



∅30 Flush type
DC12/24V WPXD



∅25 Flush type




∅30 Flush type






Basic information

1. This switch has a built-in relay on PCB, so apply power supply so that the switch could be operated.
2. This switch is available to control a load below 70W directly, but recommend using this switch to operate a relay or electronic contractor.
3. For Always ON model, whenever press the button, the LED lamp is turned OFF and operate a load
4. For Always  OFF model, whenever press the button, the LED lamp is turned ON and operate a load.


Cautions

1. Connect wires after verifying the operational voltage and allowed current
2. This waterproof switch can be used at outdoors, but do not use this switch at a place exposed to combustible gas or explosive gas.
3. When forcefully fastening, it could cause damage to product
