Justek

Justek

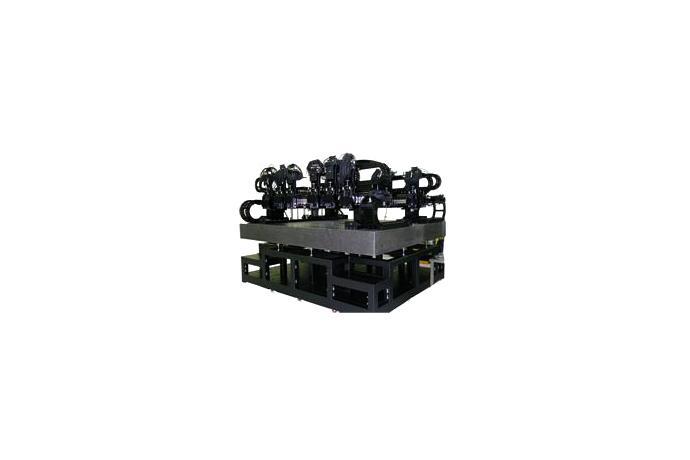

LM Guide Stage - Multi-Mover Dual Gantry Stage

Model

Series

Motion Stages


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

The Republic of Korea


Description

Description

- Stroke : 2,100mm×2,100mm
- In-position stability : ±0.05㎛
- Repeatability :±1㎛



Specification

Axis

X₁~ X₄

Y₁~ Y12

Work area

2,100mm

2,100mm

Guide

LM Bearing

Load mass

40kg(Head)

Speed

500mm/sec

Acceleration

1m/sec²

Position accuracy(보정후)

10㎛

Repeatability

±1㎛

Option
Applications

LCD height measurement equipment etc
