Justek

Justek

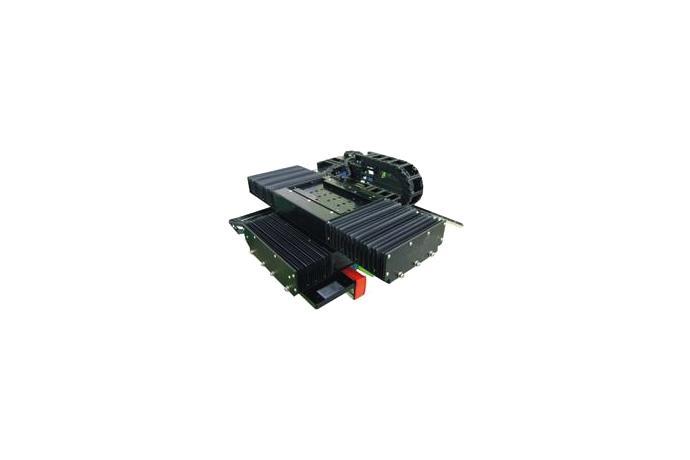

LM Guide Stage - Cross Stage

Model

Series

Motion Stages


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

The Republic of Korea


Description

Description

Cross stage is a general purpose cost effective stage suitable for short stroke systems. Precision positioning can be enabled by simple control.



Specification

Axis

X

Y

Motor

JTKCA025(1200N)

JTKC5625(690N)

Work area

750mm

550mm

Guide

LM bearing

load mass

-

100kg

Speed

500mm/sec

Acceleration

3m/sec²

Position accuracy(보정후)

10㎛

Repeatability

±1㎛

Option

Bellows cover, Lime assembly

Applications



Laser processing, universal inspection equipment
